Product Description:

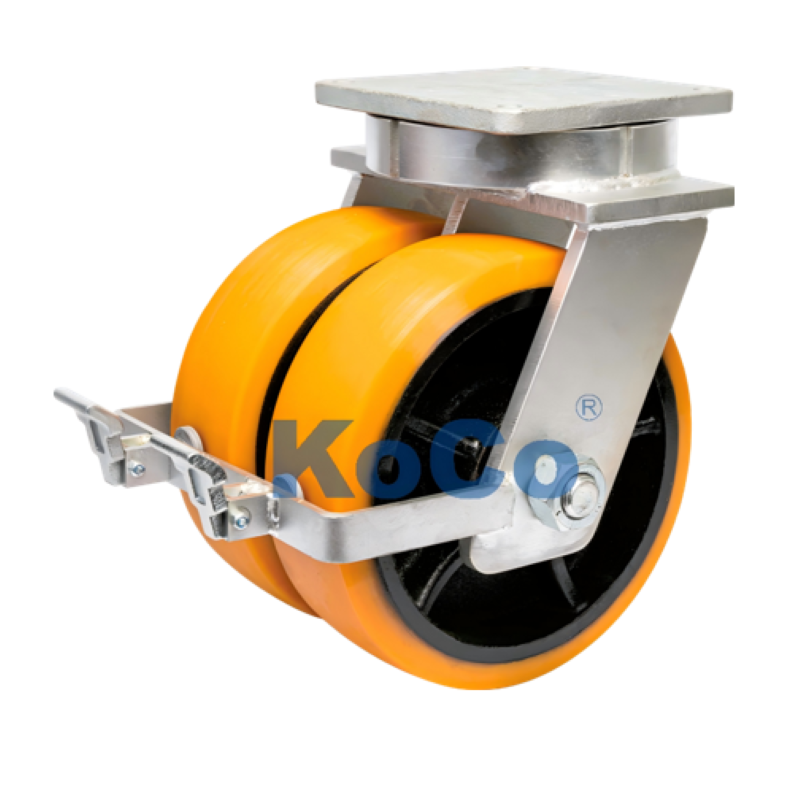

The K82 series dual wheel caster is forged and drop-steel produced by machining to meet the requirements of ultra-heavy-duty applications under extremely severe conditions. High load capacity and excellent rotating flexibility are the advantages of the dual-wheel design.

Since the raceways are precision-machined and heat-treated, the kingpinless design can be considered a feature of such a product, along with high impact resistance to continuous vibration and impact loads. Rotates flexibly, moves smoothly, and is suitable for power traction.

Advantages of Extra Heavy Duty Dual Wheel Caster:

Kingpinless Integrated Structure:

This upgrade of heavy-duty casters is the biggest breakthrough in technology. Via precision machining and localized heat treatment, and quenching, a rotating raceway can be integrated with the 14mm drop-forged base plate. So, this design removes the basic risk of bending or breaking of conventional kingpins under lateral impact or continuous vibration, thus this extends heavy-duty traction scenarios' equipment maintenance cycle.

Parallel Dual-Wheel Balanced Loading Technology:

K82 heavy duty dual wheel caster uses two 76mm×2 wheels. Here, the ground contact area is twice that of single-wheeled products. Apart from this, the static load capacity is increased to 4.5 tons and the workshop floor pressure is significantly decreased to prevent damage to expensive flooring.

14mm Drop-Forged Steel Base Plate and Precision Machining:

The caster is a high-quality drop-forged steel product, having a top plate thickness of 14mm, and the bracket structure is strengthened by several treatments.

Extra heavy duty caster Specifications:

K82 Mounting Plate Specifications:

Plate Thickness: 14mm (High-hardness forged steel material)

Outer Dimensions: 159 × 190mm

Hole Spacing: 104 × 152mm to 114 × 155mm (Elongated holes for high compatibility)

Compatible Bolt Size: Ø15mm

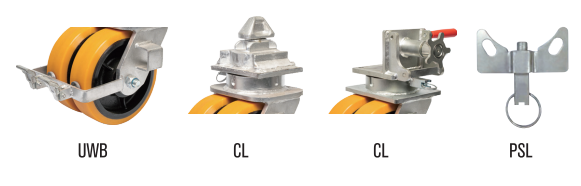

k82 Optional Brake Types:

Application Areas:

Aerospace and defense equipment.Automotive industry.Wind power and renewable energy equipment.Shipbuilding and marine equipment.Large molds, tooling, and die handling.Heavy tooling and fixture ‌transport.

Who we are:

With the launch of our brand in 1999, KoCo started off with a vision to be a supply benchmark in the caster industry. Our production capacity and delivery stability have become the lifeline of our company. In pursuit of this, we have invested in and built a modern manufacturing base covering 50,000 square meters and gathered a team of over 200 industry experts as our core team. Having 25 years of manufacturing experience, KoCo is known for a huge annual production of 20 million casters that allows us to confront and solve the issues and challenges of the global supply chain with great confidence.

Warranty:

To ensure the protection of the purchases made by international buyers, KoCo will to their utmost extend offer a one-year warranty service for all the products from the date of delivery. This clause only comes into play if there are quality defects in the scope of raw materials and manufacturing processes. Any operation involving modification, improper installation, or use beyond the limits of the technical specifications will automatically invalidate the warranty. When it is proved that the product has a quality issue, KoCo will freely replace it but will not take any additional expenses, including but not limited to shipping costs, downtime losses, or incidental damages. The warranty of the KoCo products is limited to the free replacement of the defective products, and the purpose is to set up a fair after-sales feedback mechanism based on facts and regulations.

Partners:

• KoCo Caster – collaborates in depth with various industry leaders.

• Automotive: Tesla, BMW, Mercedes-Benz, Audi, BYD, FAW, SAIC, Ford.

• Energy: CATL.

• Logistics: SF Express, JD.

• Home Appliances: Haier.

• Aerospace:‌COMAC.

KOCO Performance Testing：

KOCO has a professional R&D laboratory, and the test reports shown are just one example of our typical cases, providing you with a quality reference. We possess strong professional testing capabilities and can provide targeted performance verification and simulation experiments based on your specific load, road conditions, and industry standards.

Test video:

Test report:
