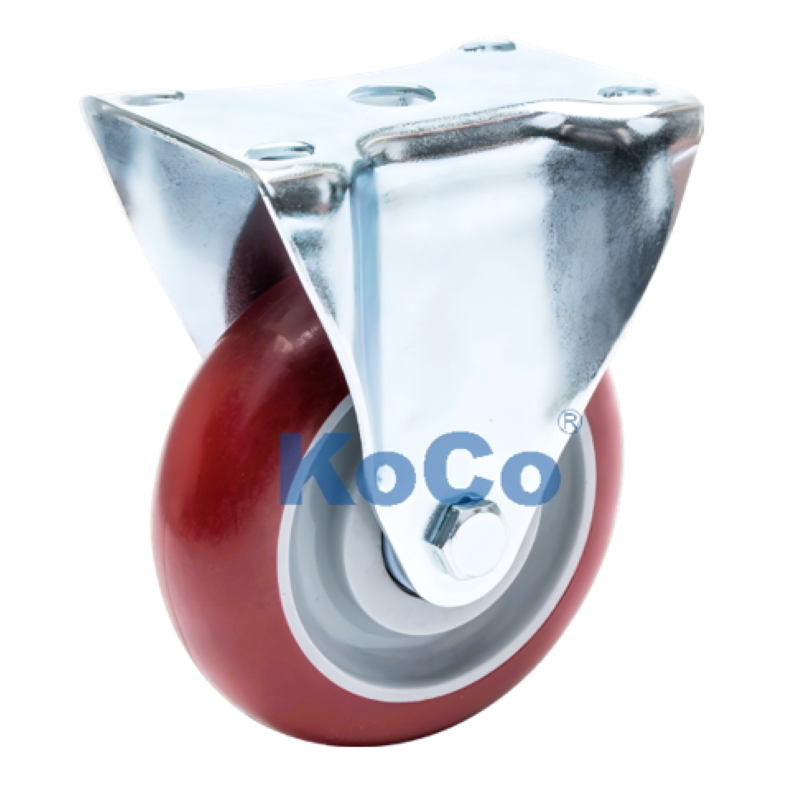

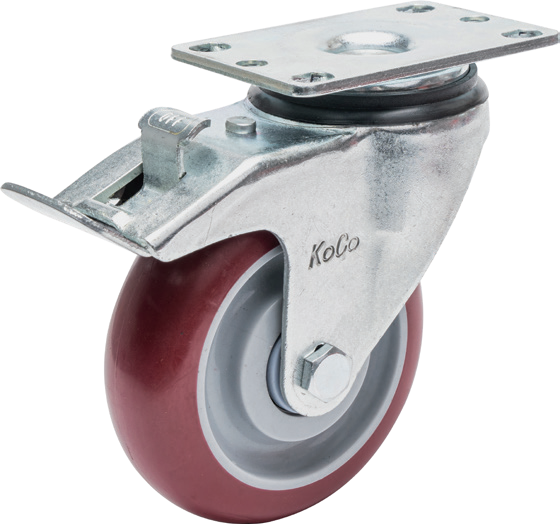

K21 TPR Caster
1. 95kg - 130kg single wheel load capacity.
2. The industrial-grade, double ball head rotating structure gives ultra-quiet carriage movement experience for medical carts and laboratory equipment. Made with non-marking thermoplastic rubber (TPR), Tpr caster wheel preserves the original beauty of your floors.
- KoCo
- China
- 15~30days
- 20 million per year
Product description:
Top heat treatment is applied to the dual-race design tracks of the K21 series tpr caster to make the tracks more versatile and durable. The single wheel can be made from a variety of materials, which makes the thermoplastic rubber caster suitable for different types of road surfaces. Besides low rolling resistance, the product also has flexible rotation.
Five core advantages:

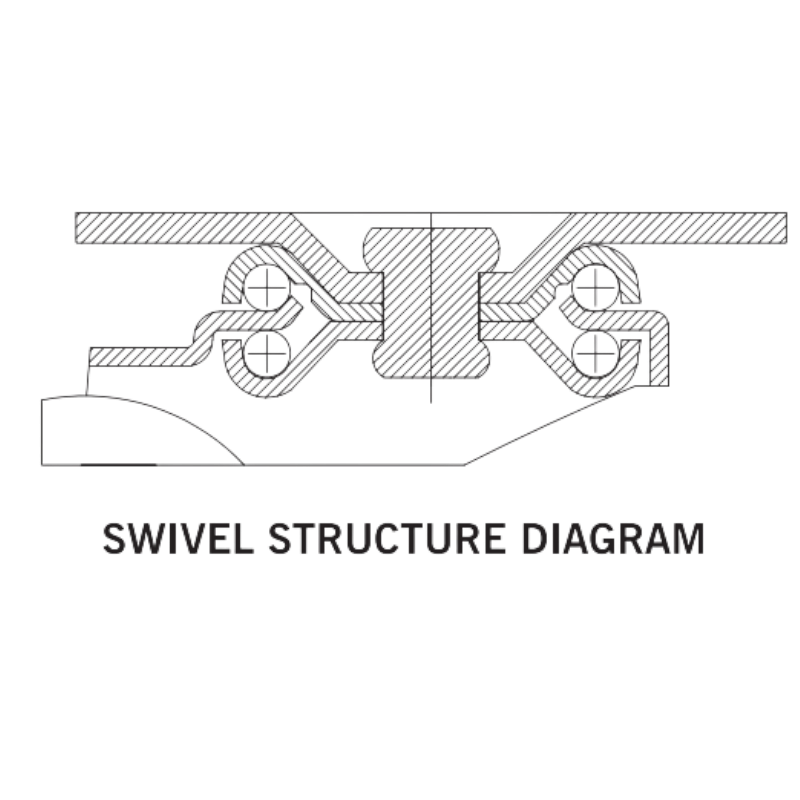

Double-layer heat-treated track: The swivel head adopts a double-row ball structure, which is heat-treated and thus strengthened, making 360° flexible steering possible even under full load.
Steel construction: 3.5mm-thickened installation base plate + 2.3mm bracket, with strength that not only matches but also exceeds similar competitive products, thus no deformation will be caused under long-term loading.
Top-level Surface Treatment: Using a green electro-galvanizing method, it has been exposed to a 24-hour salt spray test and has passed it successfully. Thus it is rust and corrosion resistant and can be used in a wide range of harsh environments.

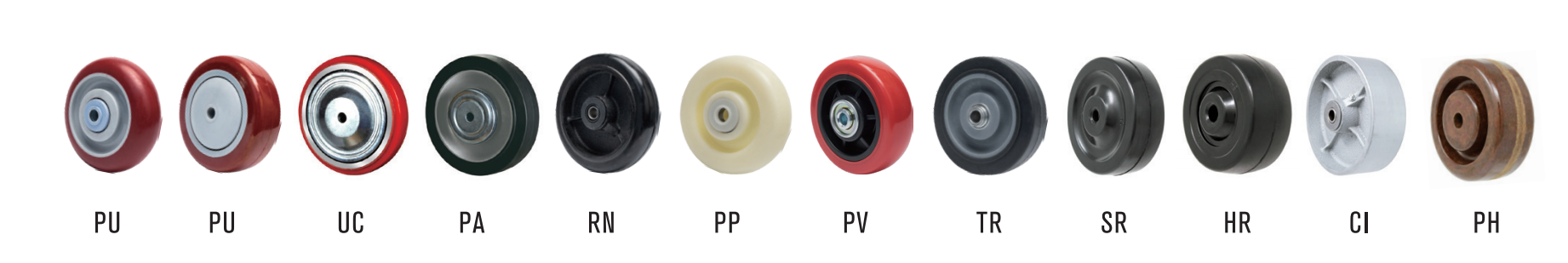

Multiple material options: More than 10 types of tread materials, including PU, TPR, nylon, and phenolic, are available, coming with a perfect adaptation to the different surfaces.
Spot supply: factory direct sales, supporting quick delivery for small batches and customization for bulk purchases.
| Top Plate &Yoke | Top plate thickness:3.5mm;York thickness:2.3mm |
| Finish | Zinc plated |
| Swivel | Two rows of ball bearings in hardened raceways for extra strength |
| Kingpin | 12.8mm steel rivet, hydraulically upset |
| Wheel Bearing | Plain/Oilex, Ball, Roller, Delrin |
| Axle | 9.5mm dia. bolt with locknut |
Only three steps to find the most suitable caster for you:
Determine the wheel diameter:
3 inches (75mm): take a preference for small-sized equipment.
4 inches (100mm): The compromise point between maneuverability and carrying capacity.
5 inches (125mm): better ability to get over the obstacles and less effort needed for moving.
Select material based on flooring:
Polyurethane (PU) / TPR: [Recommended]
Protects flooring, very quiet, suitable for tile, wood flooring and marble.
Nylon (PA) / Polypropylene (PP): Get along well with wear and have the low rolling resistance, suitable for carpets or industrial cement floors.
Cast iron / phenolic (PH): High load-bearing capacity, high temperature resistance, suitable for heavy-duty workshop environments.
Choose brake type:
flat/swivel (Swivel): only do the mobile steering.
Dual brake (SWB): It locks both the wheel rotation and the frame steering simultaneously to ensure absolute stillness of the equipment.
Front brake (TKB): Ergonomic design, easy to operate by stepping.
| Wheel Diameter | Wheel Width | Wheel Material | Bearing | Load Capacity | Radius of Rotation | Height | Swivel Model | Rigid Model |
| 75 | 32 | PU Polyu/Polypro(Crowned) PU Polyu/Polypro UC Crowned PU/Cast Iron PA PU/Aluminum RN Rubber on NY core PP Polypropylene(Copolymer) PV Pvc TR TPR SR Soft Rubber HR Hard Rubber CI Cast Iron PH Phenolic | Double Ball Bearing Double Ball Bearing Double Ball Bearing Double Ball Bearing Double Ball Bearing Double Ball Bearing Double Ball Bearing Double Ball Bearing Plain Bearing Plain Bearing Steel Tube Bearing Steel Tube Bearing | 95 95 100 100 80 80 100 95 80 80 100 100 | 75 | 105 | K21PUB3032S01 K21PUB3032S01TG K21UCB3032S01 K21PAB3032S01 K21RNB3032S01 K21PPB3032S01 K21PVB3032S01 K21TRB3032S01 K21SRP3032S01 K21HRP3032S01 K21CIS3032S01 K21PHS3032S01 | K21PUB3032R01 K21PUB3032R01TG K21UCB3032R01 K21PAB3032R01 K21RNB3032R01 K21PPB3032R01 K21PVB3032R01 K21TRB3032R01 K21SRP3032R01 K21HRP3032R01 K21CIS3032R01 K21PHS3032R01 |
| 100 | 32 | PU Polyu/Polypro(Crowned) PU Polyu/Polypro UC Crowned PU/Cast Iron PA PU/Aluminum RN Rubber on NY core PP Polypropylene(Copolymer) PV Pvc TR TPR SR Soft Rubber HR Hard Rubber CI Cast Iron PH Phenolic | Double BallBearing Double Ball Bearing Double Ball Bearing Double Ball Bearing Double Ball Bearing Double Ball Bearing Double Ball Bearing Double Ball Bearing Plain Bearing Plain Bearing Steel Tube Bearing Steel Tube Bearing | 120 120 120 120 113 120 100 100 100 100 120 120 | 87 | 129 | K21PUB4032S01 K21PUB4032S01TG K21UCB4032S01 K21PAB4032S01 K21RNB4032S01 K21PPB4032S01 K21PVB4032S01 K21TRB4032S01 K21SRP4032S01 K21HRP4032S01 K21CIS4032S01 K21PHS4032S01 | K21PUB4032R01 K21PUB4032R01TG K21UCB4032R01 K21PAB4032R01 K21RNB4032R01 K21PPB4032R01 K21PVB4032R01 K21TRB4032R01 K21SRP4032R01 K21HRP4032R01 K21SCI4032R01 K21PHS4032R01 |
| 125 | 32 | PU Polyu/Polypro(Crowned) PU Polyu/Polypro UC Crowned PU/Cast Iron PA PU/Aluminum RN Rubber on NY core PP Polypropylene(Copolymer) PV Pvc TR TPR SR Soft Rubber HR Hard Rubber CI Cast Iron PH Phenolic | Double Ball Bearing Double Ball Bearing Double Ball Bearing Double Ball Bearing Double Ball Bearing Double Ball Bearing Double BallBearing Double Ball Bearing Plain Bearing Plain Bearing Steel Tube Bearing Steel Tube Bearing | 130 130 130 130 113 130 120 120 120 120 130 130 | 100 | 155 | K21PUB5032S01 K21PUB5032S01TG K21UCB5032S01 K21PAB5032S01 K21RNB5032S01 K21PPB5032S01 K21PVB5032S01 K21TRB5032S01 K21SRP5032S01 K21HRP5032S01 K21CIS5032S01 K21PHS5032S01 | K21PUB5032R01 K21PUB5032R01TG K21UCB5032R01 K21PAB5032R01 K21RNB5032R01 K21PPB5032R01 K21PVB5032R01 K21TRB5032R01 K21SRP5032R01 K21HRP5032R01 K21CIS5032R01 K21PHS5032R01 |
1Kg=2.204621bs

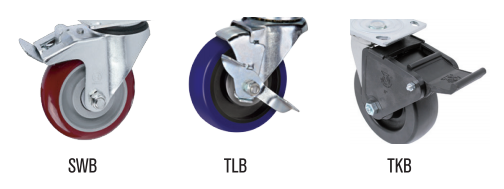

Note: For swivel models, suffixes are "+SWB": Metal Double Brake, "+TKB": Front Brake; "+TLB": Side Brake.
Other brake types：
Industry case application:
Medical and Healthcare: Our Thermoplastic rubber wheel have been very popular for hospital carts and infusion racks. They don't leave any marks and also keep the environment quiet.
Laboratory equipment: The K21 series tpr wheel offers outstanding stability and thus is a good solution to keep the internal parts of precision research instruments.
Food service: Stainless steel brackets together with hygienic and wear-resistant wheel surfaces satisfy the requirements of the food catering industry for cleanliness and durability.
Warranty:
Within one year from the delivery date, all KoCo products are free repairable if the defect is due to raw material or workmanship. The warranty does not cover damages from the usage of products beyond the specifications, modification, or incorrect installation. Products confirmed by the quality department to be defective will be replaced on a free-of-charge basis (the customer will bear the cost of shipping and installation). The warranty here offered only applies to the product itself and thus excludes any other express or implied commitments. This warranty is limited to free replacement only, and KoCo shall not be liable for any other damages of whatever kind, in particular, but not limited to, incidental or special damages.
KOCO Performance Testing：
KOCO has a professional R&D laboratory, and the test reports shown are just one example of our typical cases, providing you with a quality reference. We possess strong professional testing capabilities and can provide targeted performance verification and simulation experiments based on your specific load, road conditions, and industry standards.
Test video:
Test report:
Who are we?
With over 25 years of experience, KoCo is a professional manufacturer of casters. Our own factory, with an area of 50,000 square meters, is capable of R&D, mold manufacturing, injection-molding, and assembly. As a factory-based supplier, we offer not only standardized products but also solutions for customized mobility that fit the needs of global customers.
KoCo Caster - has deep cooperation with various industry giants.
Automobile: Tesla, BMW, Mercedes-Benz, Audi, BYD, FAW, SAIC, Ford.
Energy: CATL.
Logistics: SF Express, JD.
Home Appliances: Haier.
Aviation: COMAC.
What Is the Lead Time for Delivery?
The lead time depends on how many and what models you order. We arrange production very efficiently to be able to made deliveries on time. （Usually within 15-30 days）What Is Your Production Capacity?
Our maximum annual production capacity is up to 20 million casters.What International Shipping Methods Are Supported?
We can do sea freight, air freight, and land transportation to best satisfy the customer needs.How Many Years of Manufacturing Experience Do You Have?
Over 25 years.Which Industries Are KoCo Casters Suitable For?
At present, KoCo casters have become a common feature in a variety of industries and sectors including industrial, heavy-duty logistics, AGV/AMR, medical equipment, warehousing, furniture, and home appliances.What Is the Load Capacity of KoCo Casters?
KoCo casts have a full range of capacities from light to extra-heavy-duty casters with a load capacity of several tens of kilograms to a few tons. Check out the model of the specific product for more details.Does KoCo Casters Support Customization?
Definitely, if there is a need for a specific part like wheel size, material, core structure, or surface treatment, we are able to offer custom manufacturing.How to Conduct Quality Testing?
KoCo Casters are subjected to several quality and performance tests before they are shipped. The tests include: Load Test: Ensures the caster is safe to hold the rated load. Starting Force Test: The test proves if the load can be moved smoothly with minimal friction of resistance. Noise & Deflection Test: The test results focus on low noise generation, quiet operation, and minimal deviation during movement.
