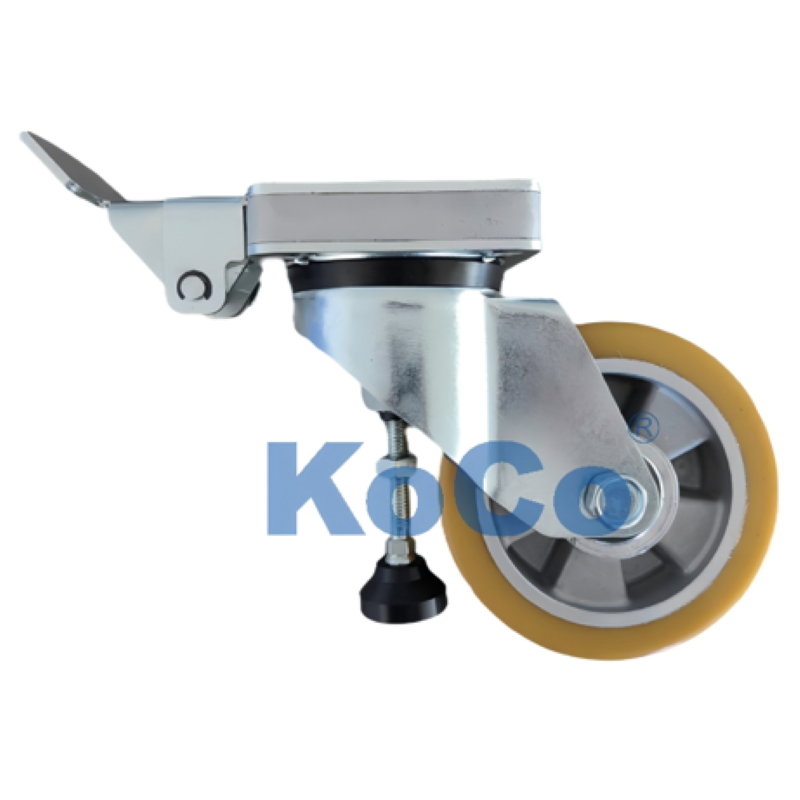

K221 Aluminum Core High Rebound PU Top Plate Brake Caster

Product Description:

221 series heavy duty caster wheels with brakes is the picture of innovation with its die-cast aluminum one-piece top plate support block raising the overall caster strength. A fixed pedal for brake adjustment in operation is thus faster and more convenient. The brake control handle is a firm structure and will consequently not rotate with the yoke, thereby ensuring safe and stable use.

Advantages of High Rebound Caster:

Non-rotating fixed operating structure:

Unlike the limitations of conventional casters, where the operating lever rotates with the wheel, K221 PU brake caster adjustment handle stays in a set position. There is no need for operators to stoop to locate the handle position, hence safety hazards caused by unintentional contact with rotating parts are effectively avoided.

Integrated die-cast aluminum support block:

The main supporting component is a high-strength die-cast aluminum alloy part, which has higher compressive strength and toughness than traditional stamped parts. It can effectively absorb vibrations and support heavy equipment for long periods of time.

Double-layer heat-treated hardened raceway:

The swivel head is equipped with a double-row ball bearing system, and the raceway is deeply heat-treated and hardened.

UX High-rebound PU aluminum core wheel:

Made of a high-elasticity polyurethane-coated lightweight aluminum alloy wheel core (UX material), with characteristics of extremely low starting resistance and good silent shock absorption. It can not only bear ton-level pressure but also ensure that no marks are left on the epoxy flooring of clean workshops, providing a smooth and silent movement experience.

Refined anti-corrosion surface treatment:

The whole tower is made by environmentally friendly electro-galvanizing technology that can be used to meet stringent industrial anti-corrosion standards.

K221 Aluminum Core Caster Selection Guide:

3-inch (76mm) - Load capacity 200kg: very low center of gravity with installation height only 95mm, suitable for heavy storage cages, storage racks, and other applications with center of gravity at a high level.

4-inch (100mm) - Load Capacity 250kg: an established industrial choice consummate in providing a perfect balance between flexibility and maneuverability, which makes the mobile workbenches and automated guided vehicles viable.

5-inch (125mm) - Load Capacity 300kg: provides excellent obstacle-crossing abilities and less effort in moving, perfect for handling equipment in a laboratory of equipment under strict conditions that often need to cross elevator gaps or uneven surfaces.

Wheel Diameter	Wheel Width	Wheel Material	Bearing	Load Capacity	Radius of Rotation	Height	Swivel Model	Rigid Model
76	38	UX HR PU/Aluminum	Precision Sealed  Ball Bearing	200	95	121	K221UXB3038S01	K221UXB3038R01
100	38	UX HR PU/Aluminum	Precision Sealed  Ball Bearing	250	115	145	K221UXB4038S01	K221UXB4038R01
125	38	UX HR PU/Aluminum	Precision Sealed  Ball Bearing	300	137.5	171	K221UXB5038S01	K221UXB5038R01



K221 Mounting Plate Specifications:

Mounting Plate Thickness: 3.5mm (York bracket thickness 2.3mm).

Base Plate Outer Dimensions: 100 × 85mm.

Hole Spacing: 80 × 60mm to 76 × 55mm (elongated hole design for flexible adaptation to different brackets).

Suitable Bolt Size: Ø9mm.

Application Areas:

Trolley, Tractor, Aerospace industry, Storage cage, Automobile manufacturing industry, Warehousing and Logistics ‍‌‍‍‌Industry.

About KoCo: A Source Factory with 25 Years of Experience

Purchasing polyurethane on cast iron wheels doesn't merely mean purchasing wheels; in fact, it means purchasing supply stability. KoCo has a tight grip on the entire chain from material sourcing to finished product:

Owned 50,000㎡ Factory:

We are not a trading company. KoCo's own factory is where everything happens, from mold development, steel stamping, injection molding production, to final assembly.

Equipment Strength:

We have high-precision stamping machines, fully automatic injection molding lines, and professional load and performance testing equipment. The K31 casters of every batch will be able to hold up to their nominal load capacity of ‌250kg.

Our global partners:

• KoCo casters are the choice of a number of global giants, including:

• Automotive: Tesla, BMW, Mercedes-Benz, BYD

• Energy and Logistics: CATL, SF Express, JD.com

• Aerospace Manufacturing: COMAC

Warranty and service

1-Year Quality Guarantee:

We offer a free replacement service for any quality problems that are not caused by human overload or misuse, within the first year since delivery.

2. Stock Availability:

We can support your urgent delivery needs with small batch orders and your scheduled delivery needs with large batch orders since we keep a large stock of standard specifications.

3. Price Advantage:

Trustworthy factory direct sales, with all middleman costs removed.

KOCO Performance Testing：

KOCO has a professional R&D laboratory, and the test reports shown are just one example of our typical cases, providing you with a quality reference. We possess strong professional testing capabilities and can provide targeted performance verification and simulation experiments based on your specific load, road conditions, and industry standards.

Test video:

Test report:
