K231 55D Polyurethane On Aluminum Core Caster
K231 55d PU caster: Each single-wheel can bear a load up to 800kg. Highly suitable for usage in digital factories, AGV (Automated Guided Vehicles), and intelligent robots. KoCo's premium factory-direct product line removes the middleman, ensuring you get a fast delivery cycle of 15-30 days.
- KoCo
- China
- 15~30days
- 20 million per year
Product Description:
The K231 series industrial caster is intended to carry very heavy loads, like those of automated production lines, AGV (Automated Guided Vehicles), and intelligent robots.

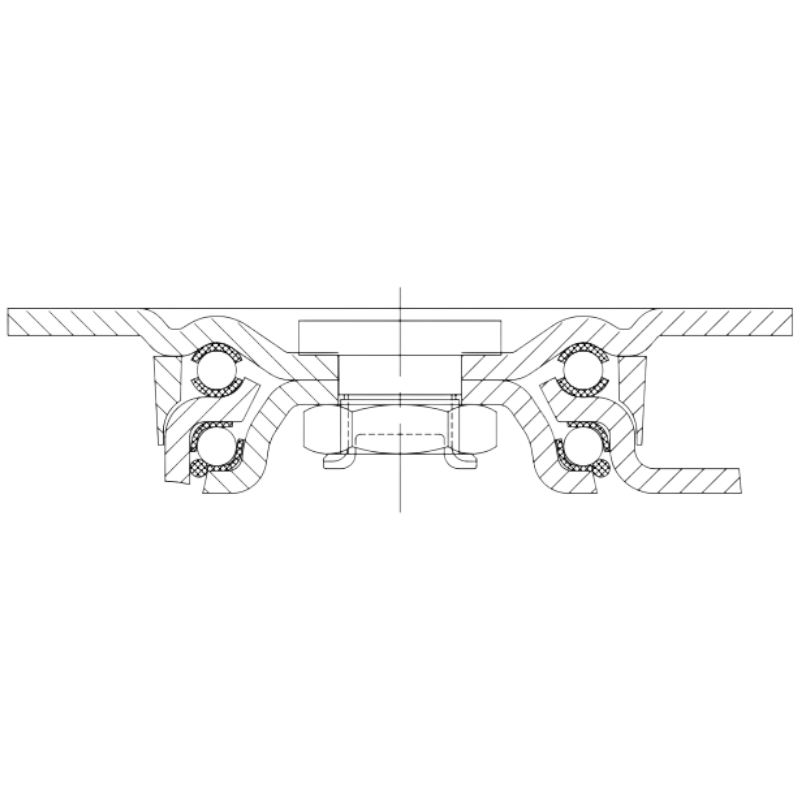

The one-piece molded bracket increases the rigidity and strength of the casters. Polyurethane caster features a dual steel ball raceway structure, with the raceway lining made of 65Mn hardened steel. This arrangement allows for very sensitive swiveling behavior while doing even more than lasting extremely well under heavy loads. The bracket surface is zinc-plated by a corrosion-resistant process to help it withstand various industrial environments.
Advantages:
65Mn Quenched and Hardened Raceway:
Typically, the 65Mn track line on the K231 high capacity caster uses high-carbon manganese steel and after being deeply heated and quenched, it is very wear-resistant and has very high fatigue strength. This totally solves the problem of raceways getting worn and grooved during heavy-duty AGV's high-frequency, in-situ turning.
Integrated Mold Forged Bracket:
By using a 5.5mm ultra-thick mounting top plate and 5mm strengthened bracket legs, the integrated cold forging process achieves an extremely high level of structural rigidity. Even with instantaneous pressure and impact loads of 800kg, the bracket does not deform.
AGV-Grade Low Starting Resistance:
K231 is specially designed for automated traction equipment, and it hasa very low eccentricity and starting coefficient. Therefore, the AGV will be able to greatly reduce the motor load at starting or changing direction, thus saving battery energy and prolonging the lifespan of the automated handling system.
Precision Sealed Double Ball Bearings:
As standard, steel ball sealed bearings come mounted in the wheel core, and this effectively prevents the ingress of metal dust and oil stains from the industrial environment, to deliver a very quiet and maintenance-free walking experience. When combined with a 24mm giant central main pin, it has excellent shear resistance.
Industrial-Grade Anti-Corrosion Surface Treatment:
The whole line of brackets has been subjected to a stellar electro-galvanizing treatment, and the performances of the salt spray test are far above the industry standards.
Top Plate&Yoke | Top plate thickness:5.5mm;York thickness:5mm |
Finish | Zinc plated |
Swivel | Two rows of ball bearings in hardened raceways for extra strength |
Kingpin | 24mm |
Wheel Bearing | Ball, Roller |
Axle | 12.7mm dia. bolt with locknut |
K231 Quick Selection Guide:
152mm (6-inch) - Load capacity 600kg/700kg: The most suitable spec for compact AGVs and intelligent warehouse equipment, capable of getting the best combination between low center of gravity and load capacity.
203mm (8-inch) - Load capacity 700kg/800kg: Provides the highest level of obstacle-crossing performance and the lowest rolling friction, being intended for heavy-duty tow tractors or large industrial assembly lines.

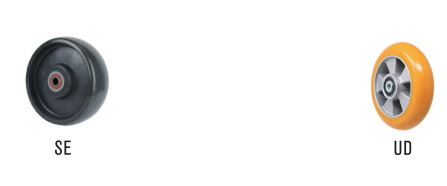

UD Aluminum Core Polyurethane Wheel: 55D high-hardness, high-elasticity PU material, making the ground, and at the same time providing excellent load-bearing capacity.
| Wheel Diameter | Wheel Width | Wheel Material | Bearing | Load Capacity | Radius of Rotation | Height | Swivel Model | Rigid Model |
152 | 50 | SE Solid Elastomer UD PU/Aluminum 55D | Precision Sealed Ball Bearing | 600 700 | 127 | 197 | K231SEB6050S02 K231UDB6050S02 | K231SEB6050R02 K231UDB6050R02 |
| 203 | 50 | SE Solid Elastomer UD PU/Aluminum 55D | Precision Sealed Ball Bearing | 700 800 | 159 | 247.6 | K231SEB8050S02 K231UDB8050S02 | K231SEB8050R02 K231UDB8050R02 |

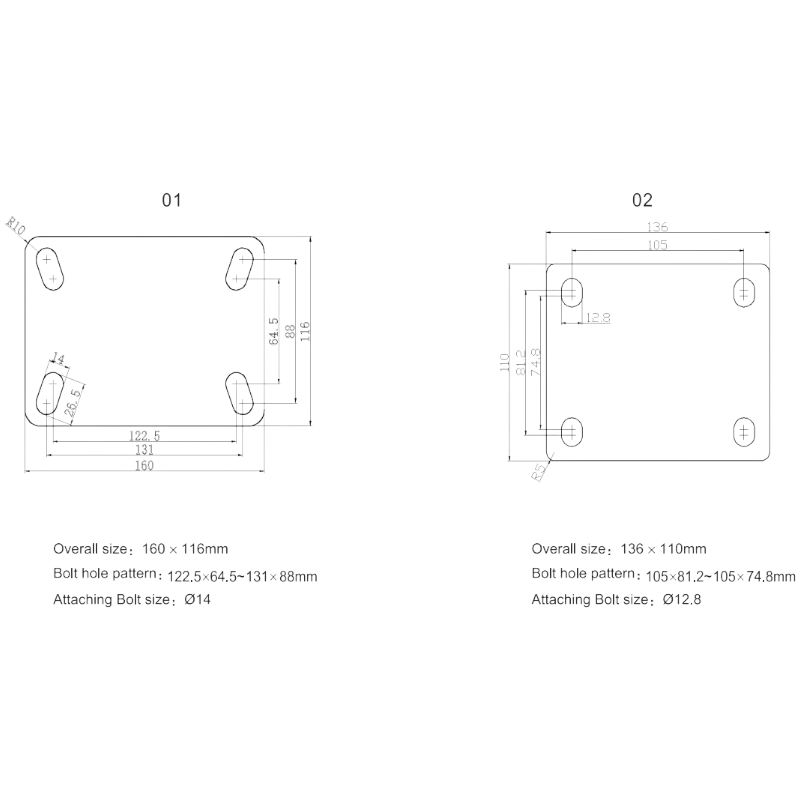

K231 Mounting Plate Specifications:
Two standard base plate dimensions in the K231 series fit perfectly with the widely used international AGVs and equipment frames:
Specification 01:
Overall size: 160 × 116mm.
Bolt hole pattern: 122.5 × 64.5mm to 131 × 88mm.
Attaching Bolt size: Ø14mm.
Specification 02:
Overall size: 136 × 110mm.
Bolt hole pattern: 105 × 81.2mm to 105 × 74.8mm.
Attaching Bolt size: Ø12.8mm.

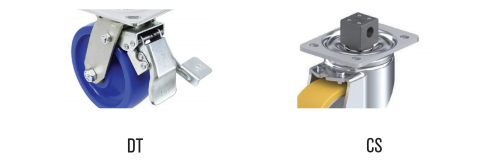

K231 Optional Brake Types:
1Kg = 2.20462 lbs
Note: For swivel models, suffixes are "+DT": Side Pedal Dual Brake, "+CS": Central Brake.
Application Areas:
Automatic production lines, Intelligent robots, Automotive manufacturing industry, AGV unmanned vehicles, Tractors, Aerospace industry
About Us:
As a professional manufacturer deeply involved in the caster industry for many years, KoCo is one of the leading competitors with its powerful production capabilities in the market. We are not only an average trading company but also a real factory with an independent production base. Currently, the company has recruited more than 200 experienced professional employees, forming a closed-loop management system from R&D to factory delivery. With the help of advanced automated production lines, our yearly production has surpassed 20 million casters, which can easily fulfill the demand for global bulk procurement. To make sure every caster is up to the challenge of complicated working environments, we have set up a thorough quality inspection system. Moreover, KoCo embraces OEM customization services and can go deep into development based on customer brand needs and technical specifications, thus becoming a trusted large-scale partner.
Warranty:
KoCo gives a one-year quality guarantee to all customers starting from the date of product delivery. Within this period, if the product has a manufacturing defect, which has been determined to be due to the raw materials or production process, we will carry out a free repair without any charge. However, this warranty does not apply to abnormal wear and tear caused by overloading, unauthorized modifications, wrong installation, or external environmental factors. If the product is found to be defective in manufacture, KoCo will send new replacement product of the same model, and the customer will bear the logistics and installation cost. This stipulation is limited to the quality of the product itself and does not provide any compensation for indirect losses. KoCo will not under any circumstance take over any additional compensation obligations for accidental damage or special consequential liabilities.
Cooperative Clients:
Above all, KoCo casters have become partners strategically of a number of industrial giants. Our automotive industry clients include first-tier brands such as Tesla, BMW, Mercedes-Benz, Audi, BYD, SAIC, FAW, and Ford, which we serve with spare parts. We are in close partnership with industry leader CATL in the new energy field. Also, KoCo's products are available at SF Express and JD Logistics warehousing systems, Haier Appliances production lines, and even the aviation manufacturing base of COMAC. The world-class companies' choices are the strongest witness to KoCo's technical skills and quality standards.
KOCO Performance Testing：
KOCO has a professional R&D laboratory, and the test reports shown are just one example of our typical cases, providing you with a quality reference. We possess strong professional testing capabilities and can provide targeted performance verification and simulation experiments based on your specific load, road conditions, and industry standards.
Test video:
Test report:
What Is the Lead Time for Delivery?
The lead time depends on how many and what models you order. We arrange production very efficiently to be able to made deliveries on time. （Usually within 15-30 days）What Is Your Production Capacity?
Our maximum annual production capacity is up to 20 million casters.What International Shipping Methods Are Supported?
We can do sea freight, air freight, and land transportation to best satisfy the customer needs.How Many Years of Manufacturing Experience Do You Have?
Over 25 years.Which Industries Are KoCo Casters Suitable For?
At present, KoCo casters have become a common feature in a variety of industries and sectors including industrial, heavy-duty logistics, AGV/AMR, medical equipment, warehousing, furniture, and home appliances.What Is the Load Capacity of KoCo Casters?
KoCo casts have a full range of capacities from light to extra-heavy-duty casters with a load capacity of several tens of kilograms to a few tons. Check out the model of the specific product for more details.Does KoCo Casters Support Customization?
Definitely, if there is a need for a specific part like wheel size, material, core structure, or surface treatment, we are able to offer custom manufacturing.How to Conduct Quality Testing?
KoCo Casters are subjected to several quality and performance tests before they are shipped. The tests include: Load Test: Ensures the caster is safe to hold the rated load. Starting Force Test: The test proves if the load can be moved smoothly with minimal friction of resistance. Noise & Deflection Test: The test results focus on low noise generation, quiet operation, and minimal deviation during movement.
