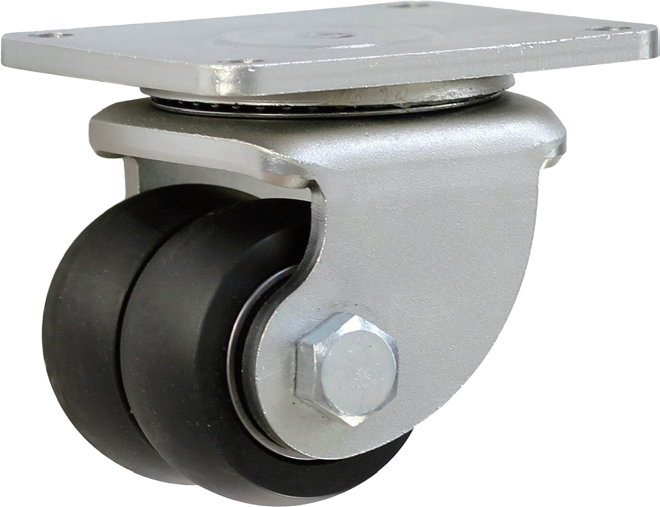

K311 Dual Wheel AGV Caster (300-400kg Capacity)

Product Description:

K311 series casters are geared for AGV (automated guided vehicles) and unmanned handling carts, featuring an extremely low center of gravity and high load capacity. They also incorporate a precision-machined swivel raceway for accurate steering. With dual wheels, the Agv caster wheel not only helps to maintain the swivel flexibility under heavy loads, but also ensures quiet, smooth bracket steering with good wear resistance, and can be used for continuous duty operation.

The combination of a thrust needle roller bearing and a deep-groove ball bearing is used in the swivel raceway, which is an effective bearing structure that has the advantage of high accuracy, rotating smoothly with low noise. The legs are formed by a deep drawing process that gives them a beautiful shape, and they are also deformation-resistant. The metal surface of the bracket is zinc-plated and sealed, and the salt spray resistance can reach 76 hours. The maximum load capacity of the bracket can reach up to 400 kg, which makes it an excellent choice for low-center-of-gravity, heavy-load equipment and powered low-speed applications.

Advantages of Dual Wheel Agv Robot Caster Wheel:

AGV Navigation-Grade Precision:

This extraordinarily short eccentric distance design drastically lowers the motor start load and increases the battery life; thus, the AGVs positioning deviation is controlled within a stable few millimeters even during a spot turn.

Zero Dead Angle Dual-Wheel Steering:

The characteristic of the dual-wheel reverse rotation completely abolishes the "steering jamming" under heavy loads, thus not only is the steering resistance decreased by 40%, but also the direction changes can be done smoothly even in extremely narrow spaces.

Cleanroom-Grade Corrosion Resistance and Rigidity:

The integrated seamless stretch forming offers a sturdy construction. After a 76-hour salt spray test, no rust or debris shedding is detected, and 3C electronics and semiconductor cleanrooms requirements are perfectly met.

24/7 High-Frequency Durability:

DLP low-heat generation material option can effectively help in preventing the rise of the wheel surface temperature and the delamination caused by continuous operation. It also greatly increases the smart factory equipment maintenance cycle.

Dual Wheel Agv Castors Quick Selection in Just Three Steps:

Select material:

DNX (Nylon): The lightest rolling resistance, suitable for smooth concrete surfaces.

DLP (Polyurethane): [Premium Choice] Noise-isolating and shock-absorbing, prevents delamination in high-frequency traction.

Determine wheel diameter:

60mm: Ultra-low centricity (height 89mm), prevents equipment tipping.

75mm: High cross-country abilities (height 96mm), good passability.

Lock dimensions:

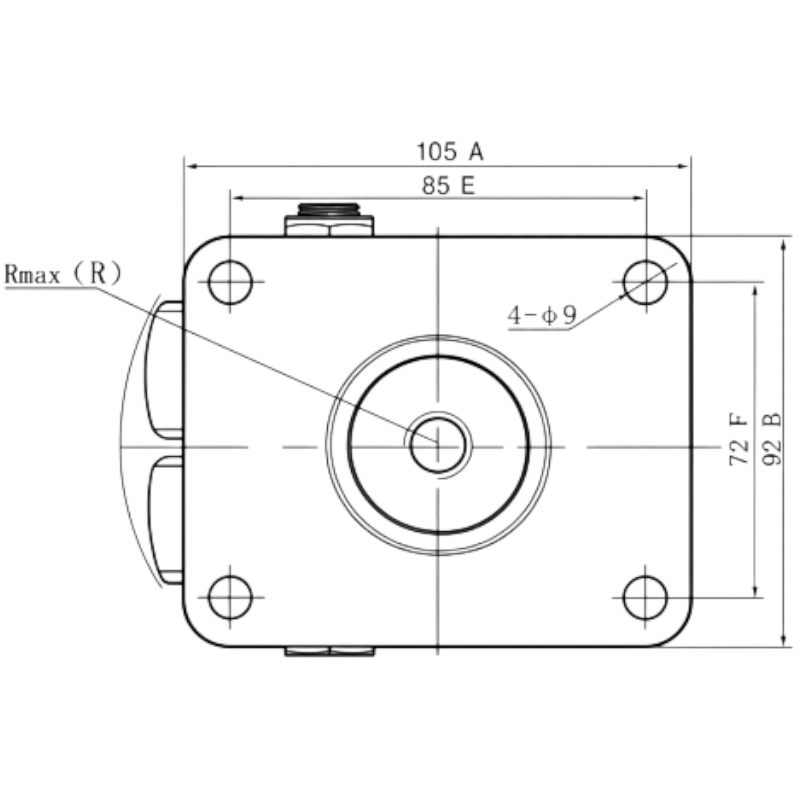

Base plate 105×92mm, hole spacing 85×72mm, fits standard AGV interface.
