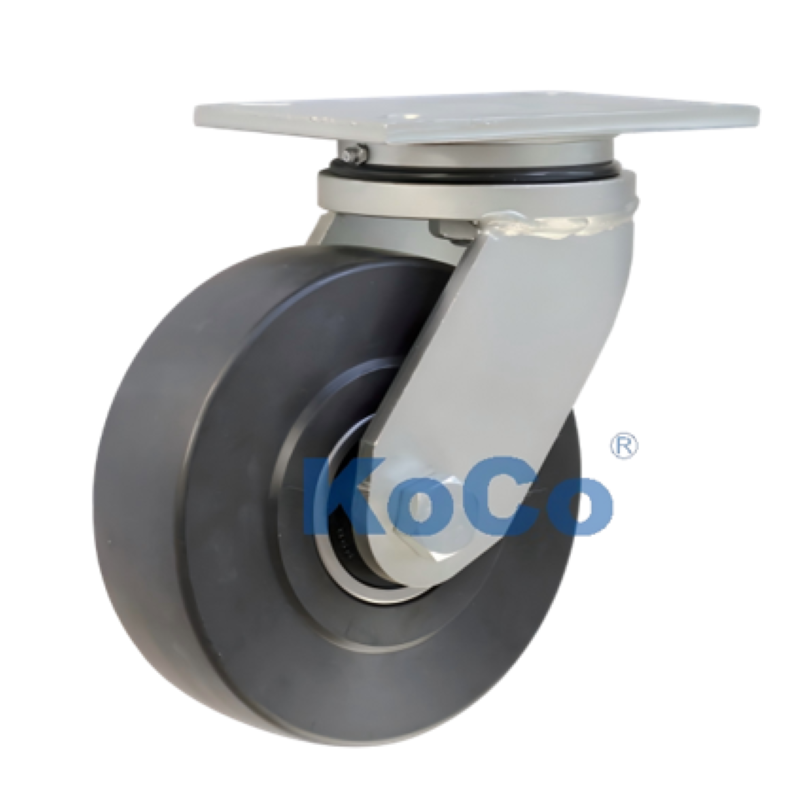

K351 AGV Caster (1500-2000kg Capacity)
K351 Heavy-Duty Industrial AGV Caster: Single wheel capable of carrying a load of 1500Kg to 2000Kg. Highly efficient load conditions like heavy-duty AGV handling, aerospace assembly, and heavy vehicle mold transfer can be dealt with. Being a direct supplier from the KoCo brand source factory, by utilizing our 50,000㎡ square foot facility, we get rid of all the middlemen's profits and guarantee fast worldwide delivery within 15-30 days.
- KoCo
- China
- 15~30days
- 20 million per year
Product Description:
The K351 line of 2000kg caster is a special tow cart casters that need very flexible and accurate steering. They are capable of handling very heavy loads and include a high precision swivel raceway, thus providing very flexible, silent rotation with excellent wear resistance, hence continuous operation is allowed.
The swivel raceway uses a bearing combination of a thrust ball bearing and a tapered roller bearing, thus resulting in high precision, very smooth rotation, and noise-free operation. The legs are welded ones; by changing the thickness of the raceway and leg materials, a bracket can be made to have the designed service strength. A zinc plating/sealing of the bracket metal surface has been done, and the salt spray resistance can go up to 76 hours. The bracket's maximum load capacity goes up to 2000 kg, thus it meets the requirements that the equipment with highly flexible steering needs, and it can also support powered towing applications.
Benefits of High Capacity Caster:
Caster steering under 2 tons of pressure is no longer a problem:
Thrust ball bearings and tapered roller bearings are combined in this design. The problem with difficult caster steering has thus been completely solved. The very low starting resistance greatly reduces the instantaneous load on the traction vehicle or AGV motor, motor overheating and wear are prevented, and the power system's service life is greatly extended.
Impact-Resistant Welded Structure, Ensuring Safety Under Extreme Loads:
The bracket legs use a reinforced welding process, and the material thickness is dynamically reinforced according to the 2000kg load requirement.
76-Hour Salt Spray Resistance, Fearless of Harsh Working Conditions:
High-standard electroplated zinc sealing has been done for the metal surface, and in salt spray testing, the duration has been 76 hours. So, it is suitable for shipbuilding factories with very high humidity, mechanical workshops that are metal dust contaminated, or places where anti-rust is strictly enforced. As a powered traction tool, specifically designed for "powered chassis":
It is known that the eccentricity of the rotation has been optimized for automated powered traction. Thus, it guarantees excellent tracking and flexibility for the heavy-duty carts while moving at high speed or turning, thus preventing skidding and excessive swaying.
K351 Industrial Wheel Selection Guide:
Material Options:
PX (High-strength polyurethane with cast iron core):
[Heavy load preferred] The single wheel width is only 76mm. It can bear the pressure of 2 tons and at the same time,
protect the floor. In addition to oil resistance, it has very good shock absorbing and low noise properties
which are suitable fora precision environment like the automotive industry
NX (High-strength reinforced nylon):
Features lighter weight and lower rolling friction. Resistant to strong chemical corrosion, suitable for concrete floors or extremely smooth surfaces, ideal for achieving maximum starting efficiency.
Wheel Diameter Strategy:
150mm / 200mm:
Low installation height. Under a 2-ton load, it can ensure the stability of the center of gravity.
250mm / 300mm:
Strongest obstacle crossing capability. When there are workshop joints or debris etc., even in the worst cases, the extra-large wheel diameter ensures smooth movement and reduces the vibration of the cargo.
| Wheel Diameter | Wheel Width | Wheel Material | Bearing | Load Capacity | Radius of Rotation | Height | Swivel Model | Rigid Model |
| 150 | 76 | PX Heavy-Duty PU/Cast Iron | 6405ZZ | 1500 | 137 | 200 | K351PXB6076S01 | K82PXB60152R01 |
| 200 | 76 | PX Heavy-Duty PU/Cast Iron | 6405ZZ | 1800 | 166 | 255 | K351PXB8076S01 | K351PXB8076R01 |
| 250 | 76 | PX Heavy-Duty PU/Cast Iron | 6405ZZ | 2000 | 191 | 305 | K351PXB1076S01 | K351PXB1076R01 |
| 300 | 76 | PX Heavy-Duty PU/Cast Iron | 6405ZZ | 2000 | 216 | 355 | K351PXB1276S01 | K351PXB1276R01 |
| 150 | 64 | NX High-Strength Nylon | 6405ZZ | 2000 | 137 | 200 | K351NXB6076S01 | K351NXB6076R01 |
| 200 | 64 | NX High-Strength Nylon | 6405ZZ | 2000 | 166 | 255 | K351NXB8076S01 | K351NXB8076R01 |
| 250 | 64 | NX High-Strength Nylon | 6405ZZ | 2000 | 191 | 305 | K351NXB1076S01 | K351NXB1076R01 |
| 300 | 64 | NX High-Strength Nylon | 6405ZZ | 2000 | 216 | 355 | K351NXB1276S01 | K351NXB1276R01 |

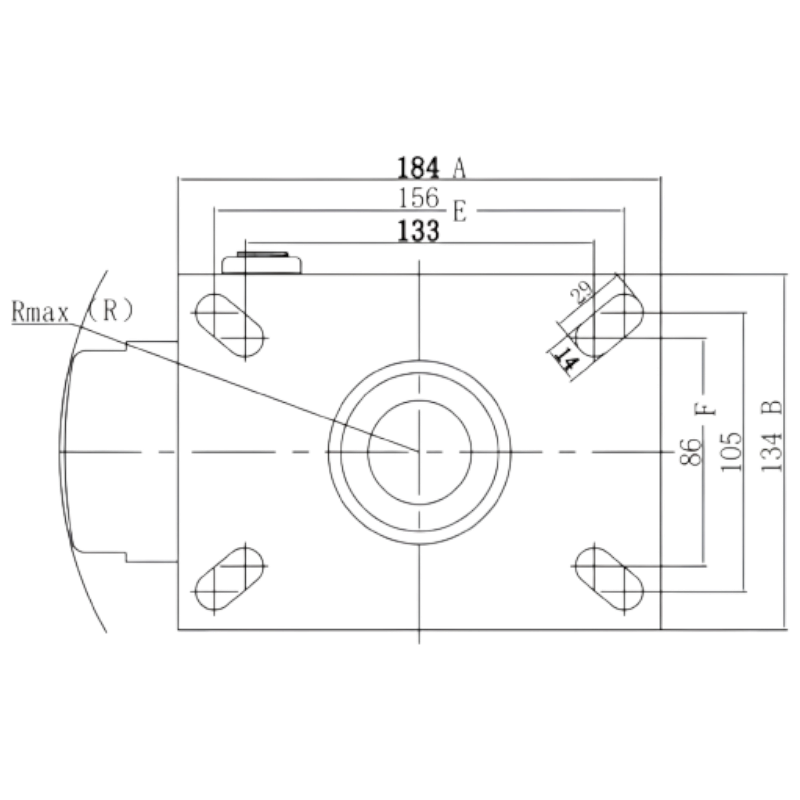

K351 Base Plate Mounting Specifications:
Overall size A×B: 184 × 134mm (Extra-large support area)
Bolt hole pattern E×F: 156 × 105mm / 133 × 86mm (Multi-hole compatible design)
Attaching Bolt size: 14 × 29mm (We strongly recommend 10.9 grade high-strength bolts to be used.)
Bracket Material: Reinforced steel plate welding.
Surface treatment: 76h salt spray galvanized.
Application Areas:
Automatic production lines, Intelligent robots, Automotive manufacturing industry, AGV unmanned vehicles, Tractors, Aerospace industry.
About Us:
As a professional manufacturer deeply involved in the caster industry for many years, KoCo is one of the leading competitors with its powerful production capabilities in the market. We are not only an average trading company but also a real factory with an independent production base. Currently, the company has recruited more than 200 experienced professional employees, forming a closed-loop management system from R&D to factory delivery. With the help of advanced automated production lines, our yearly production has surpassed 20 million casters, which can easily fulfill the demand for global bulk procurement. To make sure every caster is up to the challenge of complicated working environments, we have set up a thorough quality inspection system. Moreover, KoCo embraces OEM customization services and can go deep into development based on customer brand needs and technical specifications, thus becoming a trusted large-scale partner.
Warranty:
KoCo gives a one-year quality guarantee to all customers starting from the date of product delivery. Within this period, if the product has a manufacturing defect, which has been determined to be due to the raw materials or production process, we will carry out a free repair without any charge. However, this warranty does not apply to abnormal wear and tear caused by overloading, unauthorized modifications, wrong installation, or external environmental factors. If the product is found to be defective in manufacture, KoCo will send new replacement product of the same model, and the customer will bear the logistics and installation cost. This stipulation is limited to the quality of the product itself and does not provide any compensation for indirect losses. KoCo will not under any circumstance take over any additional compensation obligations for accidental damage or special consequential liabilities.
Cooperative Clients:
Above all, KoCo casters have become partners strategically of a number of industrial giants. Our automotive industry clients include first-tier brands such as Tesla, BMW, Mercedes-Benz, Audi, BYD, SAIC, FAW, and Ford, which we serve with spare parts. We are in close partnership with industry leader CATL in the new energy field. Also, KoCo's products are available at SF Express and JD Logistics warehousing systems, Haier Appliances production lines, and even the aviation manufacturing base of COMAC. The world-class companies' choices are the strongest witness to KoCo's technical skills and quality standards.
KOCO Performance Testing：
KOCO has a professional R&D laboratory, and the test reports shown are just one example of our typical cases, providing you with a quality reference. We possess strong professional testing capabilities and can provide targeted performance verification and simulation experiments based on your specific load, road conditions, and industry standards.
Test video:
Test report:
What Is the Lead Time for Delivery?
The lead time depends on how many and what models you order. We arrange production very efficiently to be able to made deliveries on time. （Usually within 15-30 days）What Is Your Production Capacity?
Our maximum annual production capacity is up to 20 million casters.What International Shipping Methods Are Supported?
We can do sea freight, air freight, and land transportation to best satisfy the customer needs.How Many Years of Manufacturing Experience Do You Have?
Over 25 years.Which Industries Are KoCo Casters Suitable For?
At present, KoCo casters have become a common feature in a variety of industries and sectors including industrial, heavy-duty logistics, AGV/AMR, medical equipment, warehousing, furniture, and home appliances.What Is the Load Capacity of KoCo Casters?
KoCo casts have a full range of capacities from light to extra-heavy-duty casters with a load capacity of several tens of kilograms to a few tons. Check out the model of the specific product for more details.Does KoCo Casters Support Customization?
Definitely, if there is a need for a specific part like wheel size, material, core structure, or surface treatment, we are able to offer custom manufacturing.How to Conduct Quality Testing?
KoCo Casters are subjected to several quality and performance tests before they are shipped. The tests include: Load Test: Ensures the caster is safe to hold the rated load. Starting Force Test: The test proves if the load can be moved smoothly with minimal friction of resistance. Noise & Deflection Test: The test results focus on low noise generation, quiet operation, and minimal deviation during movement.
