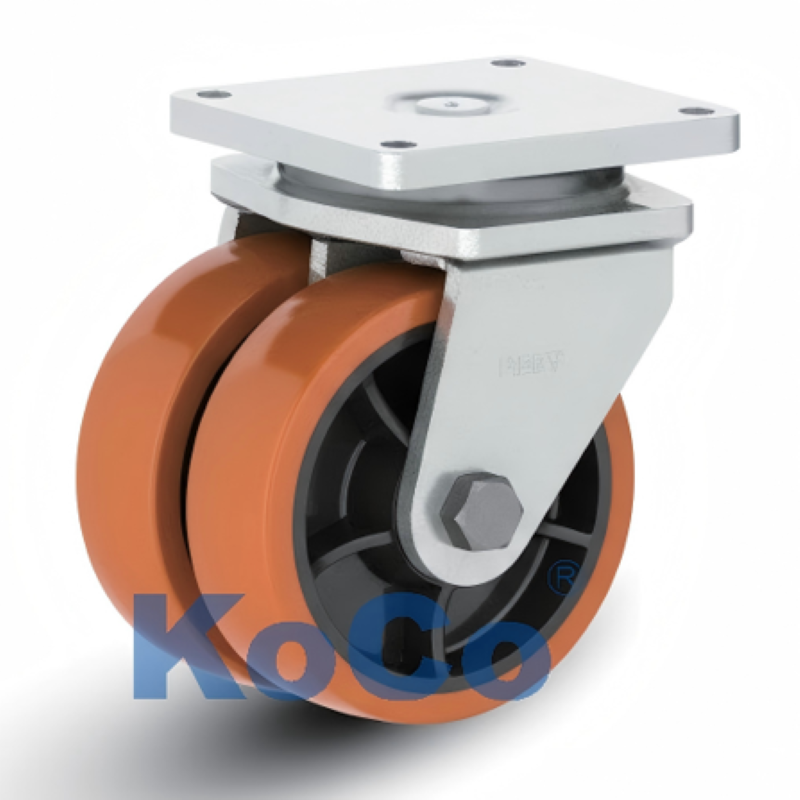

K381 Dual Wheel AGV Caster (5000-10000kg Capacity)
The K381 extra heavy agv caster single unit is capable of carrying a load of more than 10,000 kg (10 tons). This means it can be used in the aerospace industry, in heavy shipbuilding component manufacturing, and for handling ultra-heavy-duty AGVs. Since it is a factory-direct product, it is from a source manufacturer that has been in the business for 25 years and offering direct B2B worldwide procurement, the product price is without any markup from a middleman.
- KoCo
- China
- 15~30days
- 20 million per year
Product Description:
The K381 series Agv high load caster is made specifically for AGVs (automated guided vehicles), and unmanned handling carts. With a low center of gravity, high load capacity, and a precision-machined swivel raceway that allows accurate steering, these casters have it all. The double wheels used here not only make turning easier even when the unit is heavy, but at the same time, they make the bracket quieter around turning, provide a wear-resistant surface, and can work continuously without any problem.
Advantages of Heavy Duty Dual Wheel:
1. It has a "pressure ball bearing + tapered roller bearing" dual-balance structure that still allows very light steering even when the pressure is as high as 10 tons. It thus substantially reduces the load on the trailer/AGV motor and thereby increases the battery life.
2. The unprecedentedly wide parallel twin wheel setup (wheel width can be up to 127mm × 2) greatly reduces the ground pressure; on top of that, it takes advantage of the differential effect of the twin wheels so that no epoxy flooring turns to dust with shear damage during on-the-spot turning, and thusan expensive floor asset is saved.
3. The raceway is machined to very high precision and, combined with a strengthened bracket, the unit shakes free under heavy load. It is thus possible for the AGV to move and position itself dynamically and with an accuracy of only a few millimeters. Laser/visual navigation stability is then greatly improved.
4. Our entirely in-house-made molds enable us to provide one-on-one load testing and technical consulting that is tailored to the specifics of your environment.
K381 Agv High Load Caster Selection Guide:
Select material based on load capacity:
DNX (Reinforced Nylon): Load capacity up to 10,000kg. Industry's lowest starting resistance, ideal for long-distance heavy-duty towing.
DPX (Polyurethane with Cast Iron Core): Load capacity up to 10,000kg. The quiet and absorbent material maximizes the protection of the floor surface.
Select wheel diameter based on road conditions:
200mm-250mm: It is very good for keeping the equipment stable at a low center of gravity, and thus the equipment with a high center of gravity will not tip over.
300mm-355mm: It has excellent physical obstacle running capability, such that it can easily go over the elevator gaps, tracks, and road potholes.
| Wheel Diameter | Wheel Width | Wheel Material | Bearing | Load Capacity | Radius of Rotation | Height | Swivel Model | Rigid Model |
| 200 | 89X2 | DPX Dual Heavy-Duty PU/Cast Iron | 6408ZZ | 5000 | 195 | 290 | K381DPXB80178S01 | K381DPXB80178R01 |
| 250 | 89X2 | DPX Dual Heavy-Duty PU/Cast Iron | 6408ZZ | 6000 | 217 | 341 | K381DPXB10178S01 | K82PXB80152R01 |
| 300 | 89X2 | DPX Dual Heavy-Duty PU/Cast Iron | 6408ZZ | 7000 | 239 | 391 | K3881DPXB12178S01 | K381DPXB12178R01 |
| 355 | 127X2 | DPX Dual Heavy-Duty PU/Cast Iron | 6412ZZ | 10000 | 287 | 483 | K3881DPXB14254S01 | K381DPXB14254R01 |
| 200 | 76X2 | DNX Dual High-Strength Nylon | 6408ZZ | 7000 | 190 | 290 | K381DNXB80152S01 | K381DNXB80152R01 |
| 250 | 76X2 | DNX Dual High-Strength Nylon | 6408ZZ | 7000 | 213 | 341 | K381DNXB10152S01 | K381DNXB10152R01 |
| 300 | 76X2 | DNX Dual High-Strength Nylon | 6408ZZ | 7000 | 235 | 391 | K381DNXB12152S01 | K381DNXB12152R01 |
| 355 | 127X2 | DNX Dual High-Strength Nylon | 6412ZZ | 10000 | 287 | 483 | K381DNXB14154S01 | K381DNXB14154R01 |

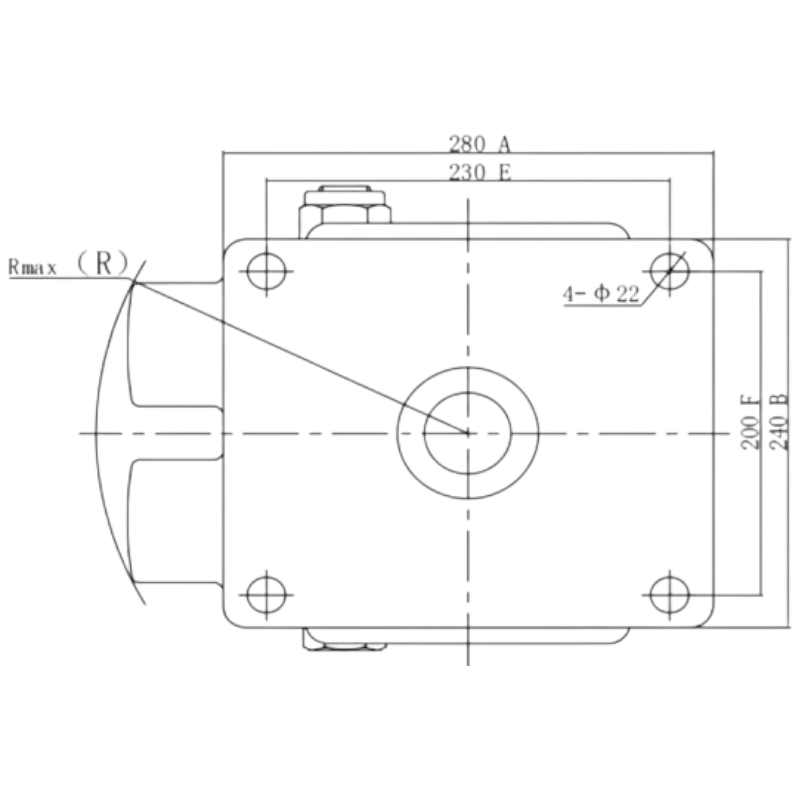

K381 Base Plate Specifications:
Base plate dimensions: 280 × 240mm (An extra-large base plate ensures the structural stability of the installation, and prevents it from collapsing even under extreme loads)
Bolt hole pattern: 230 × 200mm (Heavy machinery international standard universal)
Compatible bolts: Ø22mm (Must use 10.9 grade or higher ultra-high strength bolts for locking)
Process: It is a reinforced steel plate welded structure. The zinc coating has been treated and sealed to be resistant to 76 hours of salt spray.
Application Areas:
Factory automation, Smart warehousing, 3C Electronics manufacturing, Smart manufacturing, Automotive manufacturing, New Energy Manufacturing
About Us:
As a professional caster manufacturer with over 25 years of industry experience, KoCo boasts a modern factory spanning 50,000 square meters. We possess full-产业链 (full-chain) production capabilities, from initial R&D and design to high-precision mold manufacturing, injection molding, and finished product assembly. This vertically integrated factory supplier model allows us to not only provide high-quality standardized products but also offer deeply customized mobile solutions for the complex working conditions of large-scale global procurement clients.
Warranty:
KoCo provides a one-year limited warranty on all delivered products, starting from the date of delivery. During this warranty period, if a product is proven to be defective due to material defects or manufacturing flaws, we will provide free repair support. It is important to note that this warranty policy does not cover physical damage caused by overloading, use outside of design specifications, unauthorized modifications, or incorrect installation. If our quality inspection department ultimately determines that the product has a manufacturing defect, KoCo will provide a free replacement of the same model. Please note that the customer is responsible for the round-trip shipping costs and on-site installation fees during the replacement process.
Cooperative Clients:
Above all, KoCo casters have become partners strategically of a number of industrial giants. Our automotive industry clients include first-tier brands such as Tesla, BMW, Mercedes-Benz, Audi, BYD, SAIC, FAW, and Ford, which we serve with spare parts. We are in close partnership with industry leader CATL in the new energy field. Also, KoCo's products are available at SF Express and JD Logistics warehousing systems, Haier Appliances production lines, and even the aviation manufacturing base of COMAC. The world-class companies' choices are the strongest witness to KoCo's technical skills and quality standards.
Certification:
The factory of KoCo is ISO 9001 certified for quality management system. Its products also meet several international industrial mobility standards. With 25 years of manufacturing experience, the quality of our products is not only recognized in the domestic market but also exported overseas, meeting the entry standards of the EU and North American markets, thus we are a compliant choice for your global procurement.
KOCO Performance Testing：
KOCO has a professional R&D laboratory, and the test reports shown are just one example of our typical cases, providing you with a quality reference. We possess strong professional testing capabilities and can provide targeted performance verification and simulation experiments based on your specific load, road conditions, and industry standards.
Test video:
Test report:
What Is the Lead Time for Delivery?
The lead time depends on how many and what models you order. We arrange production very efficiently to be able to made deliveries on time. （Usually within 15-30 days）What Is Your Production Capacity?
Our maximum annual production capacity is up to 20 million casters.What International Shipping Methods Are Supported?
We can do sea freight, air freight, and land transportation to best satisfy the customer needs.How Many Years of Manufacturing Experience Do You Have?
Over 25 years.Which Industries Are KoCo Casters Suitable For?
At present, KoCo casters have become a common feature in a variety of industries and sectors including industrial, heavy-duty logistics, AGV/AMR, medical equipment, warehousing, furniture, and home appliances.What Is the Load Capacity of KoCo Casters?
KoCo casts have a full range of capacities from light to extra-heavy-duty casters with a load capacity of several tens of kilograms to a few tons. Check out the model of the specific product for more details.Does KoCo Casters Support Customization?
Definitely, if there is a need for a specific part like wheel size, material, core structure, or surface treatment, we are able to offer custom manufacturing.How to Conduct Quality Testing?
KoCo Casters are subjected to several quality and performance tests before they are shipped. The tests include: Load Test: Ensures the caster is safe to hold the rated load. Starting Force Test: The test proves if the load can be moved smoothly with minimal friction of resistance. Noise & Deflection Test: The test results focus on low noise generation, quiet operation, and minimal deviation during movement.
