K411 Dual Wheel Forged Caster (55/65/70mm Diameter)
K411 Robot-Grade Precision 55mm Caster: Each wheel can carry a load of 180kg - 200kg, suitable for areas like low-center-of-gravity AGVs, smart handling robots, and aerospace precision equipment. As the 25-year direct factory supply series of the KoCo brand, we use our 50,000㎡ square foot plant to support super-fast delivery within 15-30 days. The formed base in the middle of this product offers exceptional impact resistance and structural rigidity compared to other similar products while keeping an ultra-low installation height.
- KoCo
- China
- 15~30days
- 20 million per year
Product Description:

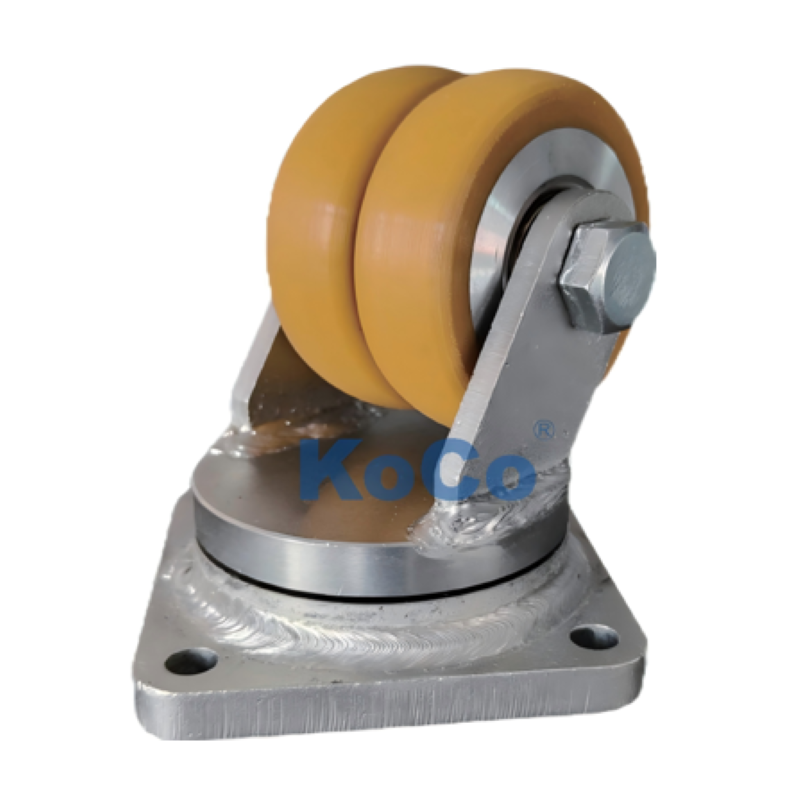

The K411 line is made with a combination of the forged caster base and the top plate to increase the strength and to make it even more beautiful. Forged agv wheel takes advantage of thrust bearing and tapered roller bearing with the center swivel structure which effectively raises the lateral and longitudinal load capacities. The strong welded yoke is capable of preventing bias balancing issues when the tread does not fit the ground perfectly, and the product is even better because of the bolted axle's robust construction.
Benefits of 70mm Caster:
Forged Base:
The top plate and the swivel base are made of high-strength forged material, not ordinary stamped metal. The plate is 6mm stronger and is the one that supports the bracket. Still, the bracket also reinforces the structure, so bracing between parts will not collapse even after dynamic operation or sudden turns.
Composite Bearing System:
The moving part cleverly integrates thrust bearings and tapered roller bearings so that the turning friction is minimized. This makes sure that the AGV is very smooth when fully loaded, whether turning in place or constantly changing directions, thus helping the drive motor last longer and battery life be extended.
Parallel Double-Wheel Design:
The DPA polyurethane/aluminum core double wheel design in parallel doubles the ground contact area, which leads to the extremely high stability of the product while at the same time eliminating the danger of single-wheel products swaying when it is placed on uneven surfaces.
Precision Sealed Bearings:
The core inside the wheel nowadays uses precision sealed ball bearings as standard, meaning that dust and oil contamination are no longer a problem, and the noise level is extremely low. Besides that, when combined with top-notch electro-galvanizing technology, the product undergoes very thorough environmental tests, it does not rust or leave debris, and it is especially suitable for semiconductor and 3C electronics cleanroom environments.
Yoke | York thickness:6mm |
Finish | Zinc plated |
Swivel | Two rows of ball bearings in hardened raceways for extra strength |
Kingpin | 12mm |
Wheel Bearing | Ball, Roller |
Axle | 12.7mm dia. bolt with locknut |
K411 Forged Caster Selection Guide:
To keep the center of gravity as close as possible (the wheel diameter being 55mm), the installation height is just 90mm, which is the perfect size for low-profile AGV robots and small automated carts.
If you want to get a better obstacle clearance (the wheel diameter is 70mm): The installation height is 105mm, which means it has stronger physical obstacle crossing capabilities and higher movement efficiency.
Wheel surface material: The standard wheel surface is a high-elastic polyurethane-coated aluminum core, which offers both high load capacity and floor protection, is silent, and does not leave marks.
| Wheel Diameter | Wheel Width | Wheel Material | Bearing | Load Capacity | Radius of Rotation | Height | Swivel Model | Rigid Model |
55 | 22×2 | DPA Dual PU/Aluminum | Precision Sealed Ball Bearing | 180 | 50 | 90 | K411DPAB2044S01 | K411DPAB2044R01 |
| 65 | 22×2 | DPA Dual PU/Aluminum | Precision Sealed Ball Bearing | 190 | 55 | 100 | K411DPAB2544S01 | K411DPAB2544R01 |
| 70 | 22×2 | DPA Dual PU/Aluminum | Precision Sealed Ball Bearing | 200 | 57 | 105 | K411DPAB3044S01 | K411DPAB3044R01 |
K411 Mounting Plate Specifications:
Overall size: 91 × 91mm (square structure, even stress distribution)
Bolt hole pattern: 71 × 71mm (compact standard hole pattern)
Attaching bolt size: Ø9mm.
Bracket process: 6mm thick bracket, high-strength forged base.
Industry sectors:
Automotive production lines, Smart robots, Automotive production industry, AGV unmanned cars, Tractors, Aerospace sector
About Us:
As a professional caster manufacturer with over 25 years of industry experience, KoCo boasts a modern factory spanning 50,000 square meters. We possess full-chain production capabilities, from initial R&D and design to high-precision mold manufacturing, injection molding, and finished product assembly. This vertically integrated factory supplier model allows us to not only provide high-quality standardized products but also offer deeply customized mobile solutions for the complex working conditions of large-scale global procurement clients.
Warranty:
KoCo extends a limited one-year warranty on all products delivered, which begins at the delivery date. During the warranty period, a product found defective in its material or manufacturing will be repaired free of charge. This warranty policy exempting physical damages caused by overloading, usage out of design specifications, unauthorized modifications, or incorrect installation should be considered as very important.
In case the product is confirmed to have a manufacturing defect after the quality inspection by us, KoCo will carry out a free replacement with a product of the same model. Customer should, however, be aware that the charges for the round-trip shipping and on-site installation during the replacement procedure will be borne by the customer.
Partners:
KoCo Caster – has established in-depth partnerships with several industry giants.
Automotive: Tesla, BMW, Mercedes-Benz, Audi, BYD, FAW, SAIC, Ford.
Energy: CATL.
Logistics: SF Express, JD.
Home Appliances: Haier.
Aerospace: COMAC.
KOCO Performance Testing：
KOCO has a professional R&D laboratory, and the test reports shown are just one example of our typical cases, providing you with a quality reference. We possess strong professional testing capabilities and can provide targeted performance verification and simulation experiments based on your specific load, road conditions, and industry standards.
Test video:
Test report:
What Is the Lead Time for Delivery?
The lead time depends on how many and what models you order. We arrange production very efficiently to be able to made deliveries on time. （Usually within 15-30 days）What Is Your Production Capacity?
Our maximum annual production capacity is up to 20 million casters.What International Shipping Methods Are Supported?
We can do sea freight, air freight, and land transportation to best satisfy the customer needs.How Many Years of Manufacturing Experience Do You Have?
Over 25 years.Which Industries Are KoCo Casters Suitable For?
At present, KoCo casters have become a common feature in a variety of industries and sectors including industrial, heavy-duty logistics, AGV/AMR, medical equipment, warehousing, furniture, and home appliances.What Is the Load Capacity of KoCo Casters?
KoCo casts have a full range of capacities from light to extra-heavy-duty casters with a load capacity of several tens of kilograms to a few tons. Check out the model of the specific product for more details.Does KoCo Casters Support Customization?
Definitely, if there is a need for a specific part like wheel size, material, core structure, or surface treatment, we are able to offer custom manufacturing.How to Conduct Quality Testing?
KoCo Casters are subjected to several quality and performance tests before they are shipped. The tests include: Load Test: Ensures the caster is safe to hold the rated load. Starting Force Test: The test proves if the load can be moved smoothly with minimal friction of resistance. Noise & Deflection Test: The test results focus on low noise generation, quiet operation, and minimal deviation during movement.
