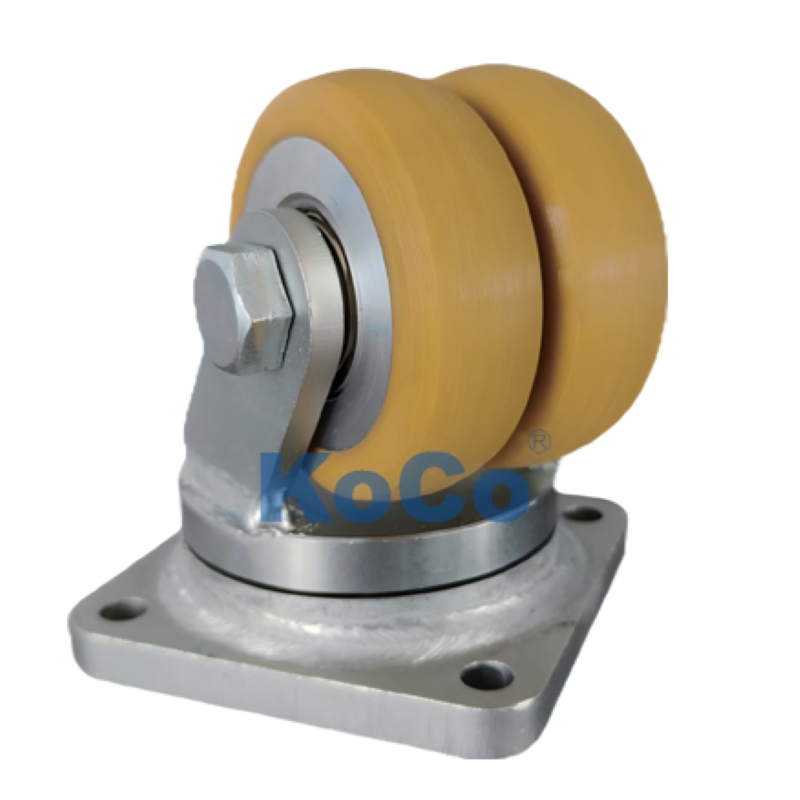

K412 Dual Wheel Forged Caster（32mm×2）

K412 2 inch caster wheels heavy duty: The load capacity of a single unit is even more than 630kg. The K412, a robot caster, is equipped with a tank-grade die-forged base and a dual precision bearing structure which makes it highly stable and capable of handling very heavy loads.

BrandKoCo
Product originChina
Delivery time15~30days
Supply capacity20 million per year

Tags:

Product Description:

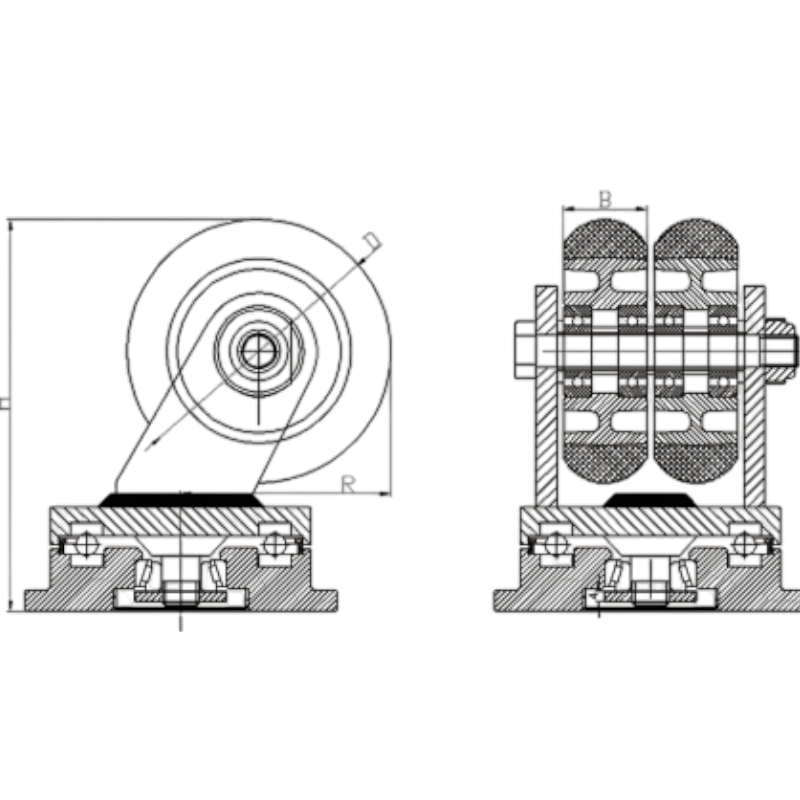

The K412 series features a forged caster base and top plate for more reliable strength and a beautiful appearance. It incorporates a thrust bearing and taper bearing in a centre swivel structure, thereby significantly increasing the lateral and longitudinal load capacities. The robust welded yoke prevents the occurrence of an unbalanced load when the tread does not fully contact the ground, and the product is further enhanced by the bolted axle construction.

Advantages of Small Forged Caster:

Top-tier Die-Forging Process:

Unlike most stamped products on the market, the base and top plate of the K412 are produced using industrial-grade die-forging. Together with the 8mm thickened bracket, it has very high impact resistance and fatigue strength, thus avoiding deformation under high-frequency vibration or dynamic loads.

Dual Bearing Structure:

The main component of the rotation mechanism features both a thrust bearing and a tapered roller bearing. This first-class component structure significantly counters lateral and longitudinal stresses, thus reducing steering resistance and effectively lowering the load of the AGV drive motor, hence increasing the battery life.

8mm Reinforced Welding:

The legs of the bracket are as thick as 8mm and, combined with precision welding technology, the final product is capable of providing excellent lateral rigidity even under the maximum load of 630kg. The dual-wheel design brings the ground pressure to a minimum level by distributing it efficiently.

Precision Sealing Structure:

The wheel core comes standard with precision sealed ball bearings, which effectively prevent the ingress of metal dust and oil. The whole unit is electro-galvanised with an environmentally friendly process, which gives it a strong anti-oxidation property.

Yoke	York thickness:8mm
Finish	Zinc plated
Swivel	Two rows of ball bearings in hardened raceways for extra strength
Kingpin	14mm
Wheel Bearing	Ball, Roller
Axle	12.7mm dia.bolt with locknut

K412 2 Inch Caster Selection Guide:

To start at a high speed (76mm wheel diameter): Installation height 123mm, suitable for light to medium load mobile platforms and intelligent pallet trucks.

Balancing Load Capacity and Obstacle Crossing (127mm wheel diameter): Load capacity up to 440kg, installation height 165mm, suitable for crossing workshop gaps.

Ultimate Heavy-Duty Choice (152mm wheel diameter): Single wheel load capacity up to 630kg, the choice for heavy-duty AGV robots and aviation maintenance platforms.

Wheel Diameter	Wheel Width	Wheel Material	Bearing	Load Capacity	Radius of Rotation	Height	Swivel Model	Rigid Model
76	32×2	DUX Dual HR PU/Aluminum	Precision Sealed BallBearing	250	68	123	K412DUXB3064S03	K412DUXB3064R03
100	32×2	DUX Dual HR PU/Aluminum	Precision Sealed BallBearing	310	80	151	K412DUXB4064S03	K412DUXB4064R0
127	32×2	DUX Dual HR PU/Aluminum	Precision Sealed BallBearing	440	96.5	165	K412DUXB5064S03	K412DUXB5064R03
152	32×2	DUX Dual HR PU/Aluminum	Precision Sealed BallBearing	630	110	200	K412DUXB6064S03	K412DUXB6064R03

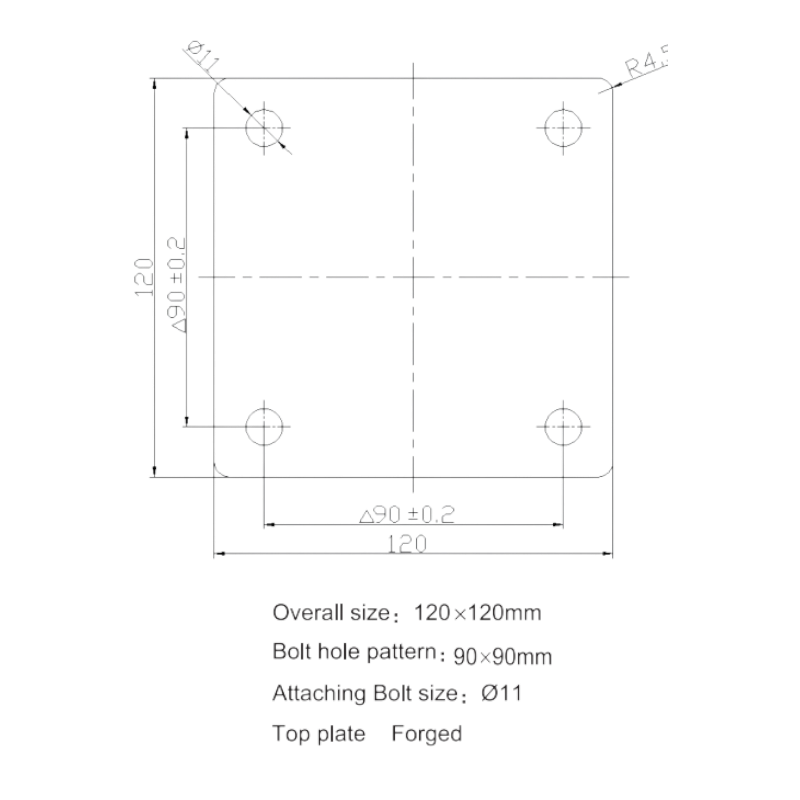

K412 Mounting Plate Specifications :

Base plate overall dimensions: 120 × 120mm (larger than K411, therefore, more stable)

Bolt hole pattern: 90 × 90mm (internationally standard heavy-duty bolt pattern)

Attaching bolt size: Ø11mm.

Bracket construction: 8mm reinforced welded bracket, forged base.

Application areas:

Automatic production lines, Intelligent robots, Automotive manufacturing industry, AGV unmanned vehicles, Tractors, Aerospace ‍‌‍‍‌industry.

About Us:

Since the time KoCo launched its brand in 1999, it has put "precision manufacturing" deeply into corporate DNA. After steady development for more than 20 years, KoCo has established a comprehensive quality control and R&D system in a 50,000 square meter production base. We are not only a manufacturer of casters but also the quality guardian of the 20 million casters produced annually. With the help of more than 200 professional employees, every caster, from design draft to finished product, undergoes rigorous ‍‌verification.

2 inch caster wheels heavy duty

Warranty:

KoCo grants a one-year quality warranty on all its caster products. If a material defect or manufacturing error causes a product to fail within 12 months of delivery, the KoCo quality inspection center will investigate and, upon confirmation, provide a free replacement. It should be noted that the warranty is void for any damage resulting from unauthorized modifications, overloading beyond the specifications, or neglect of proper maintenance. Our liability is restricted to the free replacement of the defective parts only and excludes any costs for logistics, labor, or installation of such parts. KoCo does not issue any implied warranties for certain commercial purposes and limits itself to replacement responsibility as described in this document only.

Partners:

As a factory-based supplier with a global mindset, KoCo has been one of the major sources of production line mobile parts to famous automotive brands like Tesla, BMW, Mercedes-Benz, FAW, and SAIC. In the new energy field, we are in close cooperation with CATL for logistics support. Also, KoCo's caster products are extensively used in the intelligent logistics systems of SF Express and JD. For projects with extremely stringent quality requirements, e.g., those of Haier home appliances and COMAC aircraft, through its consistent delivery and customization capabilities, KoCo has gained the trust and purchase orders from the industry's heavyweights for the long ‍‌term.

2 inch caster

KOCO Performance Testing：

KOCO has a professional R&D laboratory, and the test reports shown are just one example of our typical cases, providing you with a quality reference. We possess strong professional testing capabilities and can provide targeted performance verification and simulation experiments based on your specific load, road conditions, and industry standards.

Test video:

Test report:

What Is the Lead Time for Delivery?
The lead time depends on how many and what models you order. We arrange production very efficiently to be able to made deliveries on time. （Usually within 15-30 days）
What Is Your Production Capacity?
Our maximum annual production capacity is up to 20 million casters.
What International Shipping Methods Are Supported?
We can do sea freight, air freight, and land transportation to best satisfy the customer needs.
How Many Years of Manufacturing Experience Do You Have?
Over 25 years.
Which Industries Are KoCo Casters Suitable For?
At present, KoCo casters have become a common feature in a variety of industries and sectors including industrial, heavy-duty logistics, AGV/AMR, medical equipment, warehousing, furniture, and home ‍‌appliances.
What Is the Load Capacity of KoCo Casters?
KoCo casts have a full range of capacities from light to extra-heavy-duty casters with a load capacity of several tens of kilograms to a few tons. Check out the model of the specific product for more details.
Does KoCo Casters Support Customization?
Definitely, if there is a need for a specific part like wheel size, material, core structure, or surface treatment, we are able to offer custom manufacturing.
How to Conduct Quality Testing?
KoCo Casters are subjected to several quality and performance tests before they are shipped. The tests ‍‌include: Load Test: Ensures the caster is safe to hold the rated load. Starting Force Test: The test proves if the load can be moved smoothly with minimal friction of resistance. Noise & Deflection Test: The test results focus on low noise generation, quiet operation, and minimal deviation during movement.
