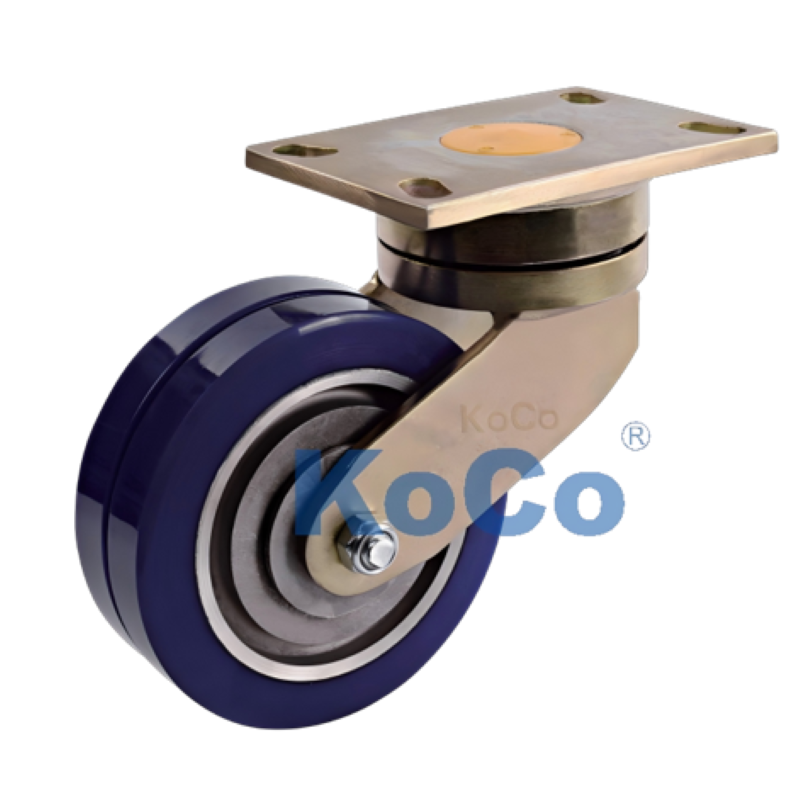

K441 AGV Casters 20 Km/h

Product Description:

The K441 series high speed caster utilizes a raceway that joins thrust ball bearings with tapered bearings to bring out the best of the bearing's capacities. Tapered roller bearings on the top raceway are designed for axial load and high-speed operation, while a thrust ball bearing on the bottom raceway is used for combined heavy radial and thrust load application. The swivel radius has been increased to half, thus reducing the effort to start and rotate the caster by roughly 50%. A 3/8" thick top plate and legs made from 5/16" steel are the construction of the caster, and to address the problem of the kingpin coming loose under the lateral force, it is the ultimate solution to traditional casters. The superior durability of the yellow zinc-plated finish is evident, and the rated speed of the caster is up to 20km/h.

Advantages of Industrial Speed Caster:

20 km/h High-Speed Rated Performance:

The unit is structurally sound and physically stable, and it also does not accumulate heat at a high speed of 20 km/h, unlike normal casters. With long-term service without exfoliation or rupture being guaranteed, this is the best option for periods of continuous use.

Composite Bearing Structure:

Combines thrust ball bearings and tapered roller bearings. This combination is so effective that it completely rules out the possibility of the steering mechanism being locked at one point or of the kingpin breaking, which are a couple of the problems that traditional single bearing casters have when operating under heavy load traction.

Long Eccentric Distance Technology:

K441 significantly reduces the mount turning resultant radial load felt by the tradiontailaergr by scientifically extending the swivel eccentric distance. (approximately 1/2 of traditional casters)

Tank-Grade 9mm Reinforced Top Plate and 18mm Kingpin:

The top plate is up to 9mm thick, the bracket legs are 8mm thick, and the central kingpin diameter is 18mm. Even under the most power traction of high intensity and continuing vibration, it remains solid with no trace of cracking apart or being damaged in any form.

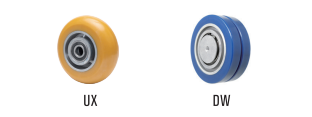

K441 Quick Selection Guide:

For ultimate speed and silence (UX Series - HR PU/Aluminum Core): This combo is made of a very stretchy and durable polyurethane-coated aluminum core, resulting in very low heat generation. It is perfect for 24/7 high-speed traction systems that not only protect your floors but also operate silently. It is thus the first choice in modern smart factories.

For ultimate stability (DPA Series - Dual Wheel Structure): This series provides more balanced load capacity and ground pressure is more effectively dispersed. It is the best choice for mobile platforms with high center of gravity or heavy-duty tow tractors that require extraordinary anti-sway performance.

Specifications Recommendations:

100mm / 125mm: The best-fit application is for tow carts with a low center of gravity and automated tooling racks.

150mm / 200mm: Are better at crossing obstacles such as elevators, gaps, tracks, and uneven ground surfaces. So, it efficiently enhances mobility.

Wheel Diameter	Wheel Width	Wheel Material	Bearing	Load Capacity	Radius of Rotation	Height	Swivel Model	Rigid Model
100	50	UX HR PU/Aluminum	Double Ball Bearing	280	92	142.9	K441UXB4050S01	K441UXB4050R01
125	50	UX HR PU/Aluminum	Double Ball Bearing	350	110	165.1	K441UXB5050S01	K441UXB5050R01
150	50	UX HR PU/Aluminum	Double Ball Bearing	410	131	190.5	K441UXB6050S01	K441UXB6050R01
200	50	UX HR PU/Aluminum	Double Ball Bearing	420	151	257	K441UXB8050S01	K441UXB8050R01
100	25×2	DPA Dual PU/Aluminum	Double Ball Bearing	280	136	142.9	K441DPAB4050S0	K441DPAB4050R02
125	25×2	DPA Dual PU/Aluminum	Double Ball Bearing	350	157	165.1	K441DPAB5050S02	K441DPAB5050R02
150	25×2	DPA Dual PU/Aluminum	Double Ball Bearing	410	174	190.5	K441DPAB6050S0	K441DPAB6050R0
200	25×2	DPA Dual PU/Aluminum	Double Ball Bearing	420	190	257	K441DPAB8050S02	K441DPAB8050R02



K441 Mounting Plate Specifications:

The K441 has two strong mounting plates that comply with international standards:

Specification 01:

Overall size: 114 × 100mm.

Bolt hole pattern: 92 × 66.5mm to 76 × 76mm.

Attaching Bolt size: Ø11mm.

Specification 02:

Overall size: 114 × 159mm.

Bolt hole pattern: 62 × 125mm to 86 × 133mm.

Attaching Bolt size: ‍‌‍‍‌Ø14mm.

Product Applications:

Heavy mobile equipment, the automobile industry, Heavy-duty mobile platform vehicle, Tractors, Aerospace industry, tooling turnover cart.

About KoCo: A Source Factory with 25 Years of Experience

Purchasing polyurethane on cast iron wheels doesn't merely mean purchasing wheels; in fact, it is purchasing supply stability. KoCo has a tight grip on the entire chain from material sourcing to finished product:

Owned 50,000㎡ Factory:

We are not a trading company. KoCo's own factory is where everything happens, from mold development, steel stamping, injection molding production to final assembly.

Equipment Strength:

We have high-precision stamping machines, fully automatic injection molding lines, and professional load and performance testing equipment. The K31 casters of every batch will be able to hold up to their nominal load capacity of ‌250kg.

Our global partners:

• KoCo casters are the choice of a number of global giants, including:

• Automotive: Tesla, BMW, Mercedes-Benz, BYD

• Energy and Logistics: CATL, SF Express, JD.com

• Aerospace Manufacturing: COMAC

Warranty and service

1-Year Quality Guarantee:

We offer a free replacement service for any quality problems that are not caused by human overload or misuse, within the first year since delivery.

2. Stock Availability:

We can support your urgent delivery needs with small batch orders and your scheduled delivery needs with large batch orders since we keep a large stock of standard specifications.

3. Price Advantage:

Trustworthy factory direct sales, with all middleman costs removed.

KOCO Performance Testing：

KOCO has a professional R&D laboratory, and the test reports shown are just one example of our typical cases, providing you with a quality reference. We possess strong professional testing capabilities and can provide targeted performance verification and simulation experiments based on your specific load, road conditions, and industry standards.
