K451 AGV Heavy Duty Leveling Caster
K451 Casters: Each unit can carry a 250kg - 630kg load. Suitable for heavy-duty AGVs, collaborative robots, and aircraft assembly lines. Being the flagship series of the original KOCO brand factory, our 50,000㎡ intelligent manufacturing capabilities guarantee efficient worldwide delivery within 15-30 days.
- KoCo
- China
- 15~30days
- 20 million per year
Product Description:

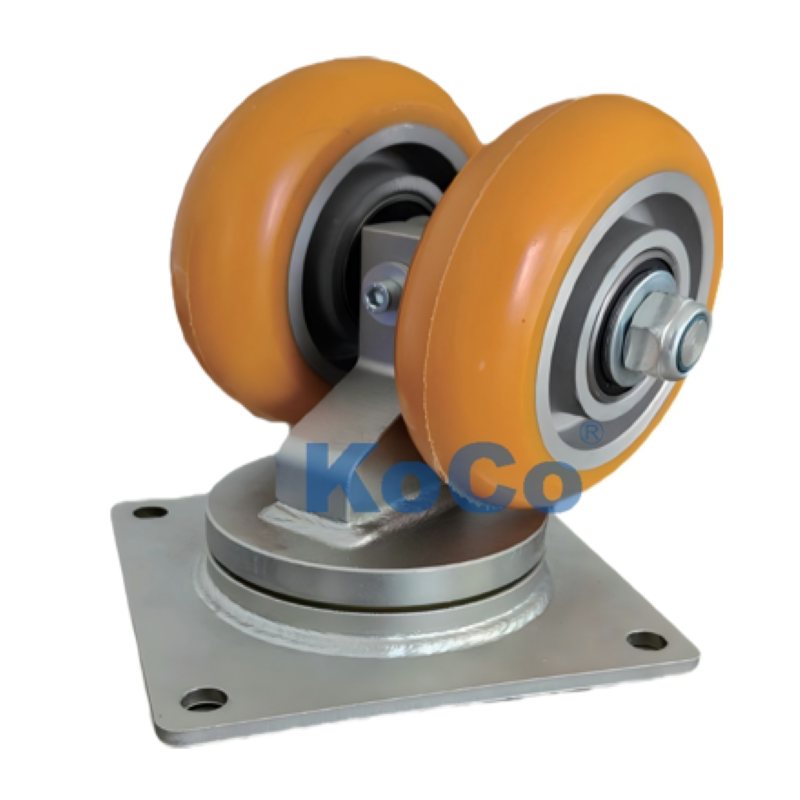

K451 series leveling caster is equipped with a forged caster base and top plate for more dependable strength and an elegant look. Agv leveling wheel is based on the center swivel structure with a thrust bearing and a taper bearing, which consequently greatly increases the load capacity in both lateral and longitudinal directions. A solid welded yoke makes it difficult for the load to become uneven if the tread does not perfectly match the ground surface, and the strong bolted axle construction increases overall durability and performance once again.
Core Advantages of Adjustable Caster:
Forged Base:
Ordinary stamped steel plates are far from K451, which employs industrial-grade die forging technology, resulting in a dense structure that is free from stress weaknesses.
Dual Bearing Swivel System:
The central turning part combines a thrust bearing and a tapered roller bearing. This lessens the traction motor's load and increases the AGV battery life.
Dual Wheel Balanced Load:
The UX series high-rebound polyurethane/aluminum core parallel dual-wheel design is adopted, which greatly increases the contact area and lowers the unit pressure on the floor.
27mm Reinforced Welding and 14mm Giant Kingpin:
The thickness of the bracket leg reaches 27mm, and the diameter of the central kingpin is 14mm, thus ensuring the structure's stability when power traction is continuous or sudden turns are made, which consequently leads to lower maintenance costs in the future.
Yoke | York thickness:27mm |
Finish | Zinc plated |
Swivel | Two rows of ball bearings in hardened raceways for extra strength |
Kingpin | 14mm |
Wheel Bearing | Ball, Roller |
Axle | 12mm dia .bolt with locknut |
K451 Selection Guide:
For extremely low center of gravity (76mm wheel diameter): Load capacity 250kg. Installation height 123mm. Ideal for small handling robots or very space-limited precision experimental platforms.
Balancing load capacity and flexibility (100mm / 127mm): Load capacity can be up to 310kg-440kg. A general specification for medium-heavy-duty mobile platforms and smart logistics pallets.
For heavy-duty applications (152mm wheel diameter): Load capacity can be as much as 630kg. Installation height: 200mm. Experience great obstacle-crossing capabilities, which is a typical part of heavy-duty AGV robots and aerospace maintenance platforms
| Wheel Diameter | Wheel Width | Wheel Material | Bearing | Load Capacity | Radius of Rotation | Height | Swivel Model | Rigid Model |
76 | 32×2 | UX HR PU/ALUMINUM | Precision Sealed Ball Bearing | 250 | 68 | 123 | K451UXB3064S03 | K451UXB3064R03 |
| 100 | 32×2 | UX HR PU/ALUMINUM | Precision Sealed Ball Bearing | 310 | 80 | 151 | K451UXB4064S03 | K451UXB4064R03 |
| 127 | 38×2 | UX HR PU/ALUMINUM | Precision Sealed Ball Bearing | 440 | 96.5 | 165 | K451UXB5076S03 | K451UXB5076R03 |
| 152 | 40×2 | UX HR PU/ALUMINUM | Precision Sealed Ball Bearing | 630 | 110 | 200 | K451UXB6080S03 | K451UXB6080R03 |

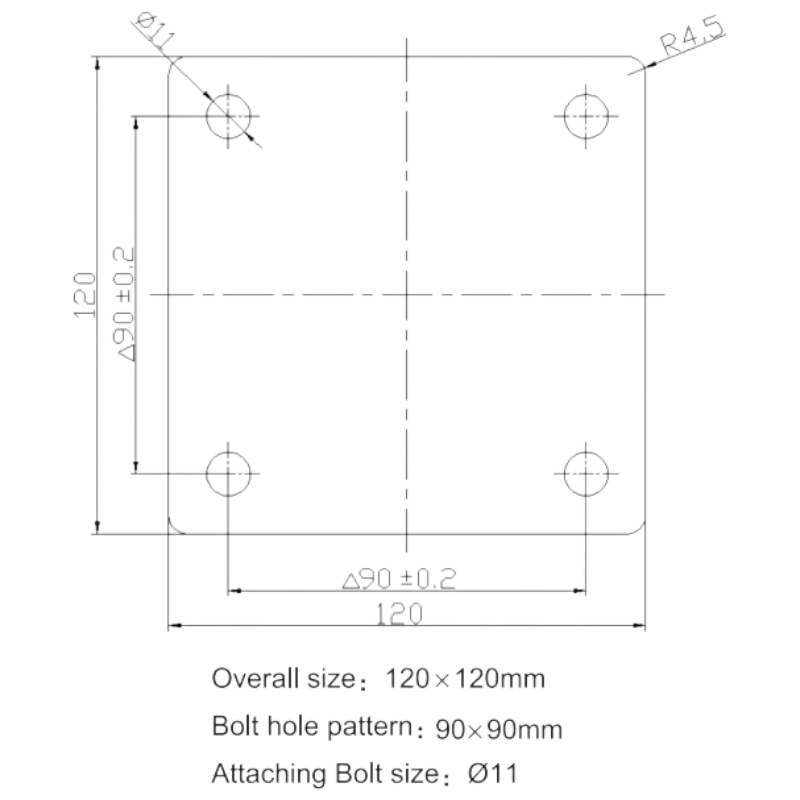

K451 Mounting Plate Specifications:
Overall size: 120 × 120mm (Large-sized forged top plate for more balanced load distribution)
Bolt hole pattern: 90 × 90mm (International standard heavy-duty bolt pattern)
Attaching bolt size: Ø11mm (It is better to use high-strength bolts of grade 10.9 or higher)
Core technology: 27mm ultra-thick support legs, integral forged base.
Product Applications:
Automatic production lines, Intelligent robots, Automotive manufacturing industry, AGV unmanned vehicles, Tractors, Aerospace industry .
About KOCO:
KoCo is a 25-year-old caster manufacturer. We possess a production site of 50,000 square meters and with the efficient teamwork of more than 200 professionals, we realize a yearly production capacity of 20 million casters. As a direct factory, we have integrated the whole industrial chain, starting from R & D and mold manufacturing to injection molding and assembly. Thus, we have not only guaranteed a stable supply during the peak seasons but also supported in-depth OEM customization, thereby enabling us to be a reliable partner of global bulk purchasing and brand manufacturing.
Laboratory:
KoCo is obsessed with quality to the degree that the entire range of its casters is tested to the maximum before dispatch from the factory. We, at KoCo, have our own independent laboratory where we load-bearing, wear, and high-impact test every batch out of our 20 million production units annually. Our quality team forms 15% of the total staff, and therefore, from the storage of the raw materials to the finished product packaging, every single step is industrial-grade safety-standard compliant.
Warranty:
The company KoCo issues a 12-month quality warranty on all the original products it mainly supplies starting from the date of shipment. During the warranty period, we provide free repair or replacement services if the defective part of the product is identified as a raw material or workmanship defect. We operate an after-sales service efficiently as a principle and therefore you can expect a solution to your problem in no time after technical confirmation. Note: It does not cover:
Certification:
The factory of KoCo is ISO 9001 certified for quality management system. Its products also meet several international industrial mobility standards. With 25 years of manufacturing experience, the quality of our products is not only recognized in the domestic market but also exported overseas, meeting the entry standards of the EU and North American markets, thus we are a compliant choice for your global procurement.
KOCO Performance Testing：
KOCO has a professional R&D laboratory, and the test reports shown are just one example of our typical cases, providing you with a quality reference. We possess strong professional testing capabilities and can provide targeted performance verification and simulation experiments based on your specific load, road conditions, and industry standards.
Test video:
Test report:
What Is the Lead Time for Delivery?
The lead time depends on how many and what models you order. We arrange production very efficiently to be able to made deliveries on time. （Usually within 15-30 days）What Is Your Production Capacity?
Our maximum annual production capacity is up to 20 million casters.What International Shipping Methods Are Supported?
We can do sea freight, air freight, and land transportation to best satisfy the customer needs.How Many Years of Manufacturing Experience Do You Have?
Over 25 years.Which Industries Are KoCo Casters Suitable For?
At present, KoCo casters have become a common feature in a variety of industries and sectors including industrial, heavy-duty logistics, AGV/AMR, medical equipment, warehousing, furniture, and home appliances.What Is the Load Capacity of KoCo Casters?
KoCo casts have a full range of capacities from light to extra-heavy-duty casters with a load capacity of several tens of kilograms to a few tons. Check out the model of the specific product for more details.Does KoCo Casters Support Customization?
Definitely, if there is a need for a specific part like wheel size, material, core structure, or surface treatment, we are able to offer custom manufacturing.How to Conduct Quality Testing?
KoCo Casters are subjected to several quality and performance tests before they are shipped. The tests include: Load Test: Ensures the caster is safe to hold the rated load. Starting Force Test: The test proves if the load can be moved smoothly with minimal friction of resistance. Noise & Deflection Test: The test results focus on low noise generation, quiet operation, and minimal deviation during movement.
