K52 Nylon Caster

Product Description:

The K52 series nylon castor wheel is outfitted with machined top plates and raceways, which contribute to an easy glide and long-lasting resistance to wear. The joint is made smoother by the use of plane and thrust bearings in the turning part.

Advantages:

1. The K52 heavy duty nylon wheel is a model with the finest features in the series. The 8-inch specification can carry 2500kg per wheel, which is suitable for very heavy equipment that needs to be moved.

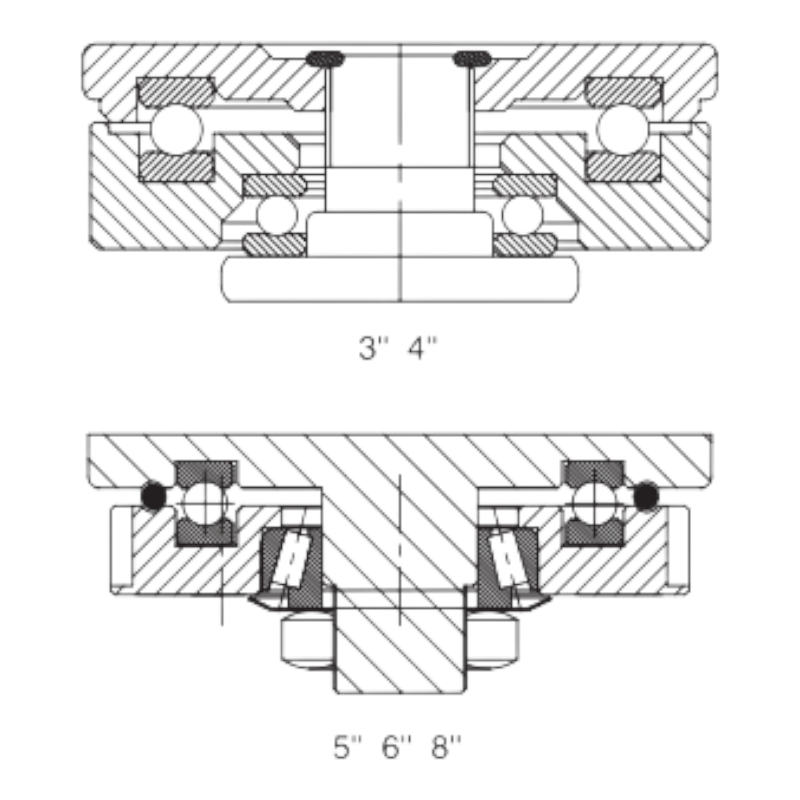

2. Heavy duty nylon caster wheel does away with the conventional kingpin completely and substitutes the kingpin with a combination of plane and thrust bearings that have totally fixed the problem of kingpin breaking and deformation under heavy loads and at the same time the caster can be used for a lifetime maintenance-free.

3. The high-strength steel (not regular stamping) top plate and raceway are highly accurate in their machining with dimensions of 7.5mm-12mm thickness, which is more than sufficient to prevent deformations of the structure under high pressure.

4. The combination of plane and thrust bearings results in less starting friction even at full load, thus making it possible for a person to push several tons of load quite effortlessly.

5. The surface of powder coating is applied at an industrial level, thus the product offers top-notch resistance to water, oil, and corrosion, and it goes well with various harsh factory operation environments.

K52 Nylon swivel caster wheel Professional Selection Recommendations:

Step 1: Determine the Load Class

400kg - 800kg: Guide to choose 3-inch (80mm) or 4-inch (100mm) casters. Though smaller in diameter, the robust K52 structure can easily handle regular heavy loads and at the same time ensure greater stability.

1000kg - 2500kg: There is a need to choose 5-inch (125mm) or even bigger ones. In particular, an 8-inch (200mm) wheel with the NX material is capable of carrying a full 2.5-ton load.

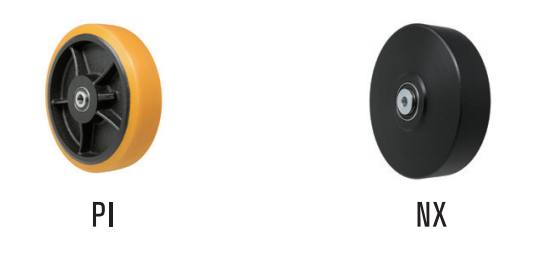

Step 2: Select wheel material based on ground surface and resistance

NX: The king of load capacity. It is super hard and almost has the lowest starting resistance. In the case of your machines being really heavy (1.5 tons - 2.5 tons) and also the floor is smooth, NX should be the first choice.

PI: Quiet and absorbs shock. The polyurethane surface is gentler to the ground and is suitable for a maximum load of 1.2 tons, and for places that require noise to be kept to a minimum.

Step 3: Verify installation dimensions

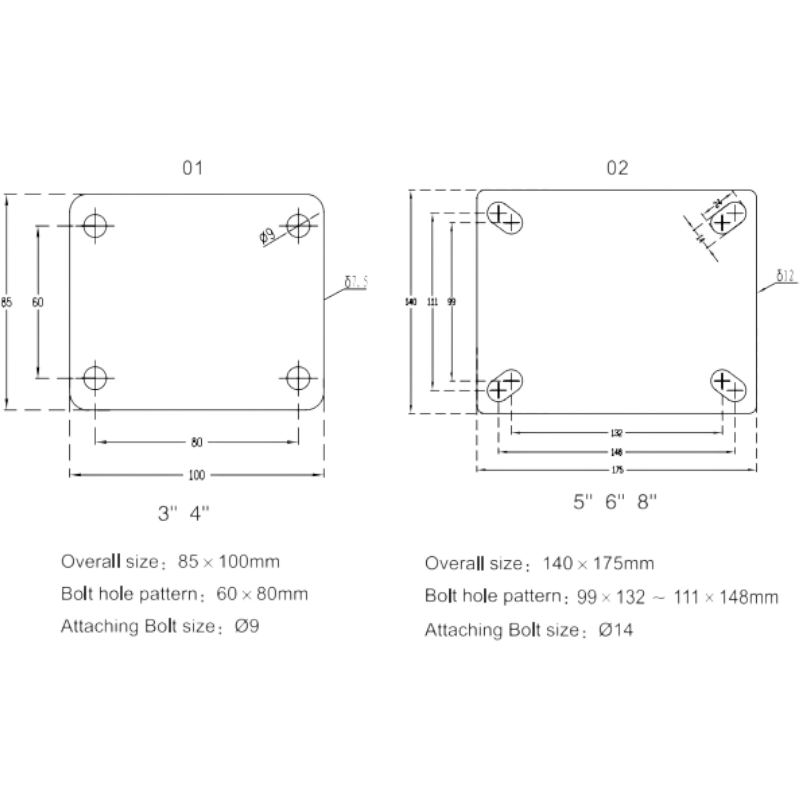

No. 01 small base plate (85×100mm): Only available for 3" and 4" sizes, hole spacing 60×80mm.

No. 02 large base plate (140×175mm): It is the standard plate for the 5", 6", and 8" models. The hole spacing can be changed from 99×132mm to 111×148mm, thus offering a wide range of adaptability.

Step 4: Special working condition reminder

Powered traction/AGV: The pinless structure of the K52 is essentially perfect for mechanical traction. To enjoy better passability and resistance against impacts resulting from high-speed operation, we suggest the 8" ‍‌version.

Application Areas:

Heavy industrial manufacturing. Aerospace industry. Heavy-duty warehousing & logistics equipment. Automotive manufacturing. Mold & die handling systems. Energy & infrastructure equipment.

About us:

KoCo is a manufacturing company with 25 years of R&D experience. We have a 50,000 square meter production plant and more than 200 professional staff. We make all products ourselves, starting from mold development and injection molding, to the assembly of the finished product. Our annual production capacity is 20 million units, and we can guarantee the on-time delivery of large orders. Besides, the company has a wholly-owned laboratory and a team that runs rigorous quality tests like load-bearing, wear resistance, and impact tests. We offer in-depth OEM customization and tailor-made solutions based on technical parameters and appearance structure for customers worldwide.

Warranty Policy:

We offer a 12-month warranty from the date of product delivery that covers product defects and production process faults. In case the product is technically and properly verified to be a quality issue, KoCo will provide free repair or replacement. The warranty does not cover the portion of the product that is damaged due to overloading, unauthorized modification, or improper installation. Free product replacement is limited only to the product itself; the customer will be responsible for other such things as logistics and installation. We ensure your after-sales rights through clear terms and conditions.

Partners:

KoCo products have been tested in several industrial scenarios with high demands, and among our major customers are:

Auto Manufacturing: Tesla, BMW, Mercedes-Benz, Audi, BYD, FAW, SAIC, Ford

New Energy/Aerospace: CATL, COMAC

Logistics/Home Appliances: SF Express, JD Logistics, Haier

Our long list of experiences in providing solutions for different sectors is a great demonstration of KoCo's technical capability to handle a wide diversity of complex loads and high-frequency movements ‍‌requirements.

KOCO Performance Testing：

KOCO has a professional R&D laboratory, and the test reports shown are just one example of our typical cases, providing you with a quality reference. We possess strong professional testing capabilities and can provide targeted performance verification and simulation experiments based on your specific load, road conditions, and industry standards.

Test video:

Test report:
