K53 Heavy Duty Caster (Over 8000 LBs. Capacity)

Product Description:

The K53 series heavy duty casters 4000kg uses a top plate and raceway that are both thoroughly machined to achieve smooth movement and a long wear cycle. The turning part is also a plane bearing and a thrust bearing for smoother operation.

Advantages:

Load-bearing structure: The top plate thickness ranges from 16mm to 20mm, and combined with a 30mm/40mm giant central pivot pin, there is guaranteed no structural deformation under 4 tons of extreme pressure.

Smooth steering technology: Instead of standard ball bearings, an industrial-grade plane pressure bearing structure is used to bring down the friction coefficient, thereby enabling a single person to easily push a fully loaded trolley without help.

Wear-resistant wheel core: The range of materials includes high-strength PU cast iron core, reinforced nylon, and forged steel, specially designed to be used on heavy industrial floors with minimal starting resistance and excellent capability to resist impacts.

Long-lasting anti-corrosion coating: A high-performance industrial powder coating has been applied over the entire surface, which is not only oil-resistant but also water-resistant and corrosion-resistant, thereby making it suitable for continuous working conditions of high intensity.

K53 Quick Selection Guide:

Step 1: Choose the specifications according to the load

6" - 8" (152-203mm): The perfectly fit choice for compact heavy loads, also great for handling molds and precision platforms that have a low center of gravity.

10" - 14" (254-356mm): A giant wheel diameter provides excellent obstacle-crossing ability and the highest rolling efficiency.

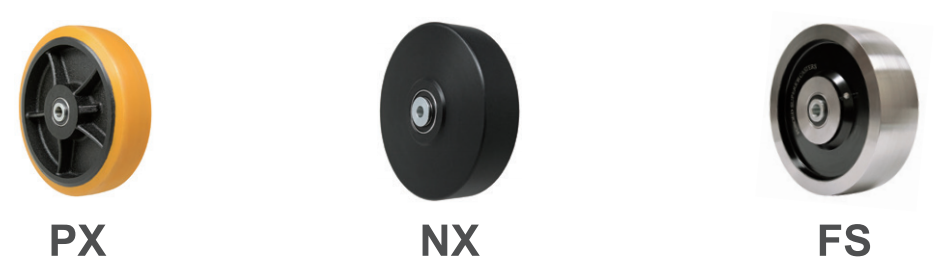

Step 2: Opt for the wheel material depending on the ground surface

PX Polyurethane (PU): [Our Heavy-duty recommendation]

Protects vulnerable epoxy floorings, plus shock absorption and quietness of operation.

NX Reinforced Nylon:

The product would be okay on even ground, focusing on providing the easiest start plus chemical resistance.

FS Forged Steel Wheels:

These wheels constitute an extremel tough design for the steel mills, mining, and other such heavy industries, and are basically indestructible.

Step 3: Lock Safety Features

Swivel: Flexible operation 360°.

UWB (Front Brake): Brings about immediate and stable stopping, multi-ton equipment, thus ensuring safety of operations.

PSL (Directional Lock): Ideal for long-distance straight-line towing, and thus being able to prevent the equipment from swaying or deviating.

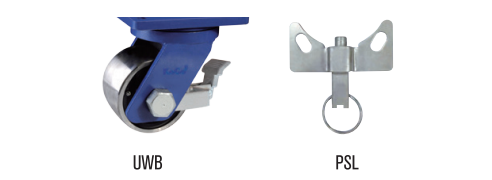

K53 Optional brake types:

1Kg = 2.20462 lbs

Note: For the models, +UWB after the model name means there is a front brake.

K53 Series Industrial Caster Mounting Plate Specifications:

K53 series large heavy duty caster wheel provides two specifications of extra-thick heavy-duty mounting plates.

Specification 01 (Suitable for 6" / 8" / 10" wheel diameters).

Plate Thickness: 16mm (Extra-thick reinforced steel plate).

Overall Plate Dimensions: 186 × 220mm.

Bolt Hole Pattern: 146 × 180mm.

Attaching Bolt Size: Ø10 / Ø17.

Specification 02 (Suitable for 12" / 14" wheel diameters)

Plate Thickness: 20mm (Tank-grade load-bearing steel plate)

Overall Plate Dimensions: 195 × 248mm.

Bolt Hole Pattern: 146 × 200mm

Attaching Bolt Size: Ø12 /‍‌Ø17.

Application Areas:

Heavy industrial manufacturing.

Aerospace industry.

Heavy-duty warehousing & logistics equipment.

Automotive manufacturing.

Mold & die handling systems.

Energy & infrastructure Equipment.
