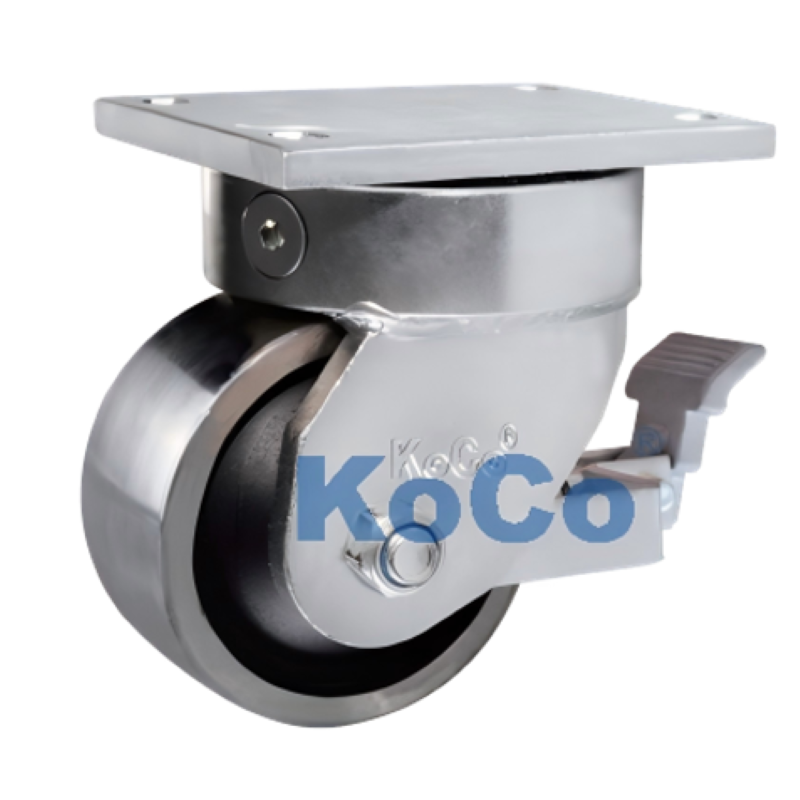

K74 Forged Steel Caster

Product Description:

The K74 series stainless steel caster wheel is a kingpinless design, and the raceway is precision machined and heat-treated. Heavy duty steel wheel has outstanding impact resistance, with the product capable of continuous vibration and impact loading. It has a very flexible and smooth rotation, power traction as well as transport carts subjected to heavy loads and lateral impact are the most suitable applications.

Product Advantages:

1. The top plate thickness of 14mm is way beyond the standard market thickness. With the combination of precision forging technology, it has been confirmed that this component is able to, without any deformation, endure pressures exceeding 3 tons, which guarantees safety.

2. The traditional center bolt, which is the most vulnerable part of traditional casters, has been replaced. The load is borne very directly by the double-layer hardened ball raceway, thus the impact load resistance is increased by 400%, enabling a zero-failure operation under high-strength working conditions.

3. The raceway is precision machined and heat-treated, and the steering resistance is almost negligible even with a 3.2-ton ultimate load. This contributes to the enhancement of manual pushing efficiency or AGV motor life extension.

4. The large-diameter 20mm axle bolt, together with a self-locking nut, is supporting the extra-large wheel very stably. It has wear resistance and fatigue resistance which are excellent.

K74 Series Metal Castor Wheel Professional Selection Suggestions:

Step 1: Load and Performance Consideration:

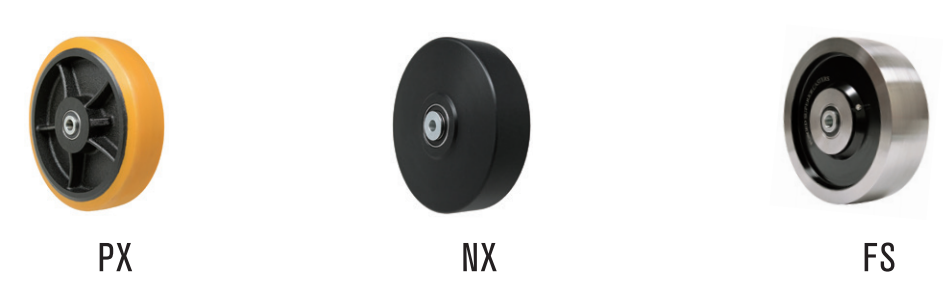

1800kg - 3000kg: It is recommended to choose PX (heavy-duty polyurethane/cast iron core). Besides being very gentle on the floor, it also has the ability to slightly absorb vibrations. This makes it very suitable for automated assembly lines like the automotive ones.

2400kg - 3270kg: First choice is NX (high-strength nylon). Starting manually is the easiest with this very low resistance product, and it has very good wear and chemical resistance.

3.2 tons Extreme Environment: FS (forged steel wheel) must be selected in this situation. Single wheel loading capacity is 3.2 tons. It is specially designed for the rough flooring which is strewn with metallic debris or for extremely high-temperature areas like steel mills, shipyards, etc.

Step 2: Check Passability and Height (Diameter)

150mm (6") - 200mm (8"): The lower installation height (216-266.5mm) lowers the center of gravity of heavy equipment significantly and hence the tipping risk is decreased.

250mm (10") - 300mm (12"): A larger diameter wheel can go over obstacles with less difficulty. If the ground is laid out with grooves or gaps, selecting a bigger diameter model will considerably lessen the bumping experienced when moving.

Step 3: Verify Mounting Dimensions

Top plate dimensions: 159 × 190 mm.

Hole spacing: Supports adjustment from 104 × 152 mm to 114 × 155 mm. Please check the existing base hole locations before placing an order. The K74 is built to ultra-heavy-duty international standard specifications.

Step 4: Control Function Configuration

Power traction application: Adding the PSL directional locking is highly recommended as it can guarantee a great improvement in the trolley control accuracy during long-distance straight-line movement.

Operation on a ramp: Front brakes UWB are necessary; this is the minimum that the 3-ton load operation safety requirements call for.
