K83 Nylon Dual Wheel Caster (Over 20000 LBs. Capacity)
K83 Ultra-Heavy duty dual wheel nylon caster: Single wheel load capacity up to 10000kg (10 tons). Features a 16mm extra-thick forged steel base plate and 14mm reinforced bracket, with a core Kingpinless (pinless) double-row raceway precision machined structure. The dual-wheel design significantly increases the load capacity while providing excellent driving stability. Designed for the world's most demanding heavy industrial applications such as shipbuilding, wind power generation, and aerospace equipment handling. Direct supply from KOCO factory, efficient delivery in 15-30 days!
- KoCo
- China
- 15~30days
- 20 million per year
Tags:
Product Description:
The K83 series heavy duty nylon twin wheels caster is drop forged steel and crafted by machining for ultra-heavy-duty applications that require working in extremely severe conditions. The dual-wheel configuration brings the benefits of high load capacity and superior rotational flexibility.
Pinless (kingpinless) design, the raceway is precision-machined and heat-treated. The product has excellent impact resistance; it can endure continuous vibration and impact loads. It rotates flexibly, moves smoothly, and is compatible with power traction.
Advantages of Dual Wheels Nylon Heavy Duty Caster:
Forged Steel and Machining Process:
Adopt high-strength forged steel components, which are combined with precision machining and localized heat treatment. Have a very high fatigue strength that is far superior to ordinary welded or cast parts.
10-Ton Dual Wheel Load-Bearing Structure:
Uses a parallel dual-wheel design (each wheel width can be up to 100mm), which greatly increases the contact area with the ground and hence effectively protects the workshop floor. On the other hand, the dual-wheel structure considerably lowers the rotational friction.
Kingpinless Double-Row Raceway Technology:
Remove the central kingpin, which is fragile, completely, and replace it with a precision-machined double-row ball bearing track design. This design is able to perfectly distribute the vertical pressure and horizontal impact forces to the raceway, thus ensuring continuous operation at high speed and power traction long life.
Top Plate &Yoke | Plate thickness:16mm;York thickness:14mm |
Finish | Zinc plated |
Swivel | Two rows of ball bearings in hardened raceways for extra strength |
Kingpin | None |
Wheel Bearing | Ball,Roller |
Axle | 30mm dia.bolt with locknut |

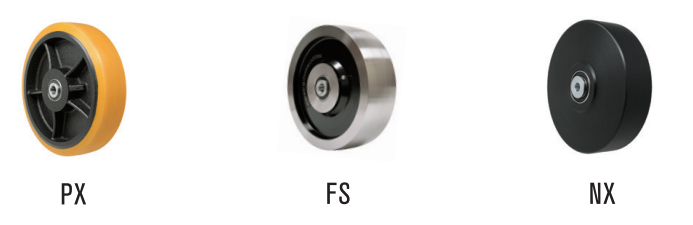

Heavy Duty Nylon Caster Selection Guide:
FS Forged Steel: In case of metallurgy, mining environments, or if a load close to 10,000kg is required, FS forged steel wheels are the only option that guarantees strength and life span.
NX Reinforced Nylon: When indoor floors are smooth and extreme ease of starting is required NX nylon wheels will do the job while still be able to provide a load capacity of 9,000 kg.

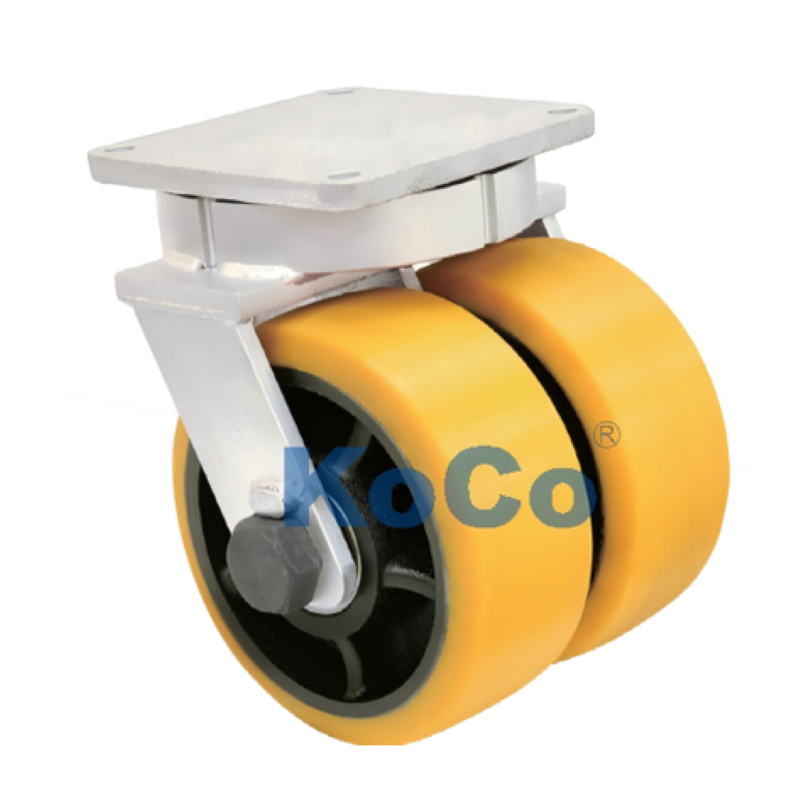

PX Polyurethane (PU): If you wish to protect your epoxy floor from heavy loads or need some degree of noise reduction and shock absorption, the PX material is the best choice with a maximum load capacity of 6,000kg.
| Wheel Diameter | Wheel Width | Wheel Material | Bearing | Load Capacity | Radius of Rotation | Height | Swivel Model | Rigid Model |
200 | 100×2 | PX Heavy-Duty PU/Cast Iron FS Forged Steel NX High-Strength Nylon | Double Ball Bearing | 3600 9000 9000 | 120 | 279.5 | K83PXB80200S01 K83FSB80200S01 K83NXB80200S01 | K83PXB80200R01 K83FSB80200R01 K83NXB80200R01 |
| 250 | 100×2 | PX Heavy-Duty PU/Cast Iron FS Forged Steel NX High-Strength Nylon | Double Ball Bearing | 5000 9000 9000 | 215 | 330.2 | K83PXB10200S01 K83FSB10200S01 K83NXB10200S01 | K83PXB10200R01 K83FSB10200R01 K83NXB10200R01 |
| 300 | 100×2 | PX Heavy-Duty PU/Cast Iron FS Forged Steel NX High-Strength Nylon | Double Ball Bearing | 5900 10000 10000 | 250 | 393.7 | K83PXB12200S01 K83FSB12200S01 K83NXB12200S01 | K83PXB12200R01 K83FSB12200R01 K83NXB12200R01 |
| 400 | 100×2 | PX Heavy-Duty PU/Cast Iron FS Forged Steel NX High-Strength Nylon | Double Ball Bearing | 6000 10000 10000 | 247 | 489 | K83PXB16200S01 K83FSB16200S01 K83NXB16200S01 | K83PXB16200R01 K83FSB16200R01 K83NXB16200R01 |

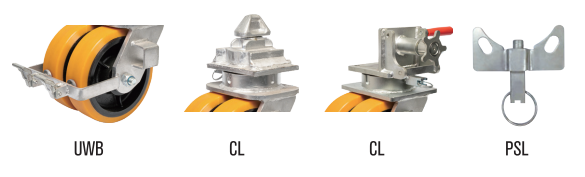

k83 Optional Brake Types:
1Kg = 2.20462lbs
Note: For swivel models, suffixes are "+UWB": Front Brake, "+PSL": Directional Lock.
K83 Mounting Plate Specifications:
Plate thickness: 16mm (Extra thick forged steel)
Outer dimensions: 216 × 216mm (Extra large mounting area)
Hole spacing: 178 × 178mm (Standard industrial hole spacing)
Suitable bolts: Ø16mm (Installation is recommended with bolts of 10.9 grade or higher strength)
Application Areas:
Aerospace & defense equipment. Automotive manufacturing industry. Wind power & renewable energy equipments. Shipbuilding & marine equipment. Handling large molds, tooling & die. Transportation of heavy tooling & fixtures.
Who we are:
KoCo has been a pioneer in caster manufacturing deeply for more than 25 years since its inception in 1999, continuously focusing on bringing worldwide industrial, medical, and commercial mobile solutions at the highest standards. We run a state-of-the-art plant with an area of 50,000 sqm, and KoCo combines the full industrial chain, from R&D and design, precision mold development, injection molding, to automated assembly.
With over 200 highly skilled industry experts and technical team members, our annual production capacity reaches up to 20 million casters. As a typical factory-based supplier, KoCo meets large-volume steady deliveries of standardized orders.
Warranty:
KoCo, a quality-focused brand, promises a one-year warranty on its products starting from the date of delivery.
The warranty excludes normal wear and tear of components due to the misuse, unauthorized modifications, or exposure to non-rated environments.
Replacement parts covered by the warranty will be free of charge from KoCo, while the buyer has to bear the cost of logistics and reassembly. Moreover, this warranty is limited solely to the product; KoCo is not legally responsible for any indirect, special, or consequential damages such as loss of production time resulting from product failure.
Partners:
KoCo Caster – through strategic partnerships, the company has grown with industry leaders in various sectors:
Automotive: Tesla, BMW, Mercedes-Benz, Audi, BYD, FAW, SAIC, Ford.
Energy: CATL.
Logistics: SF Express, JD.
Home Appliances: Haier.
Aerospace:COMAC.
KOCO Performance Testing：
KOCO has a professional R&D laboratory, and the test reports shown are just one example of our typical cases, providing you with a quality reference. We possess strong professional testing capabilities and can provide targeted performance verification and simulation experiments based on your specific load, road conditions, and industry standards.
Test video:
Test report:
What Is the Lead Time for Delivery?
The lead time depends on how many and what models you order. We arrange production very efficiently to be able to made deliveries on time. （Usually within 15-30 days）What Is Your Production Capacity?
Our maximum annual production capacity is up to 20 million casters.What International Shipping Methods Are Supported?
We can do sea freight, air freight, and land transportation to best satisfy the customer needs.How Many Years of Manufacturing Experience Do You Have?
Over 25 years.Which Industries Are KoCo Casters Suitable For?
At present, KoCo casters have become a common feature in a variety of industries and sectors including industrial, heavy-duty logistics, AGV/AMR, medical equipment, warehousing, furniture, and home appliances.What Is the Load Capacity of KoCo Casters?
KoCo casts have a full range of capacities from light to extra-heavy-duty casters with a load capacity of several tens of kilograms to a few tons. Check out the model of the specific product for more details.Does KoCo Casters Support Customization?
Definitely, if there is a need for a specific part like wheel size, material, core structure, or surface treatment, we are able to offer custom manufacturing.How to Conduct Quality Testing?
KoCo Casters are subjected to several quality and performance tests before they are shipped. The tests include: Load Test: Ensures the caster is safe to hold the rated load. Starting Force Test: The test proves if the load can be moved smoothly with minimal friction of resistance. Noise & Deflection Test: The test results focus on low noise generation, quiet operation, and minimal deviation during movement.
